Vehicle Info NeededDELPHIPART NUMBER: 117-HP10170

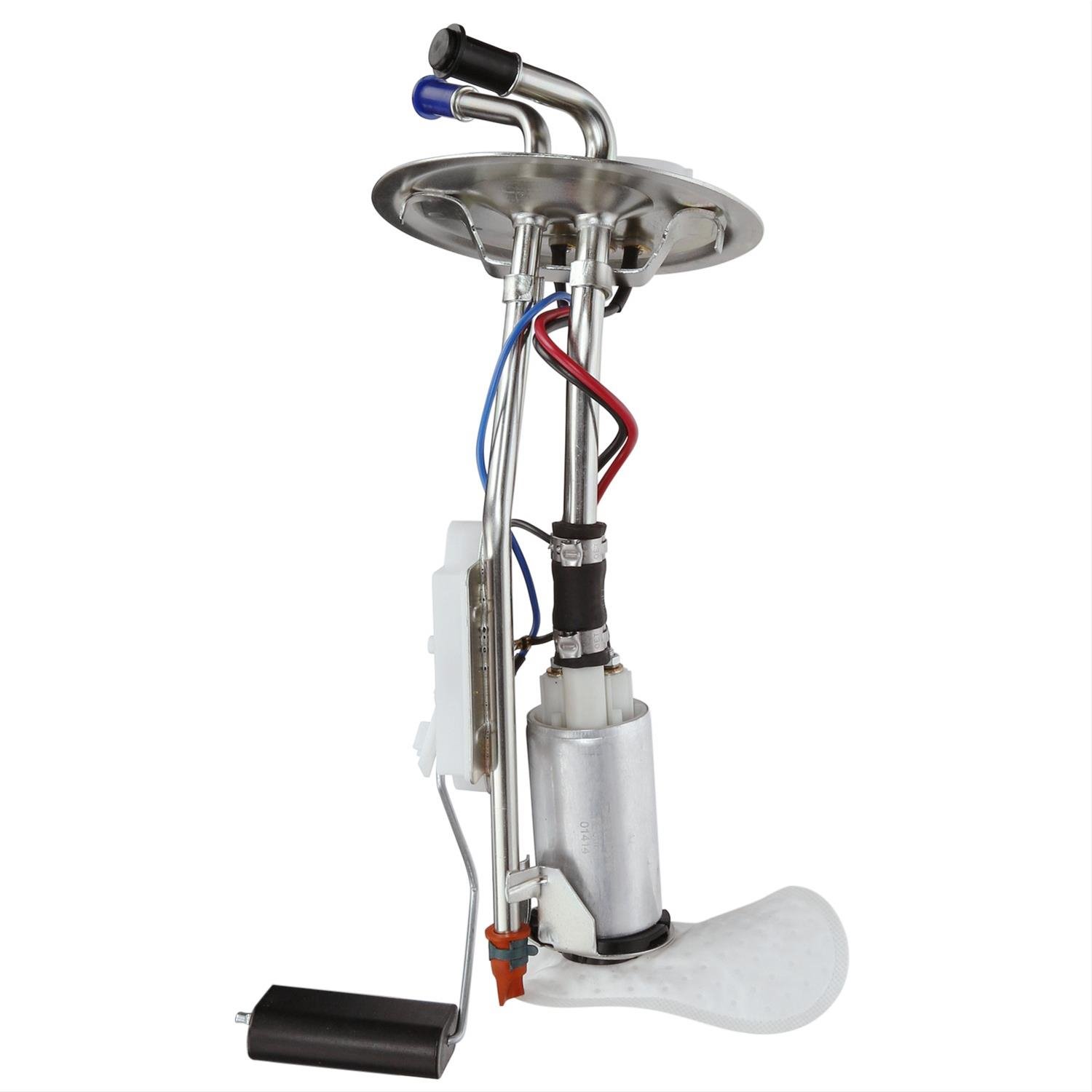

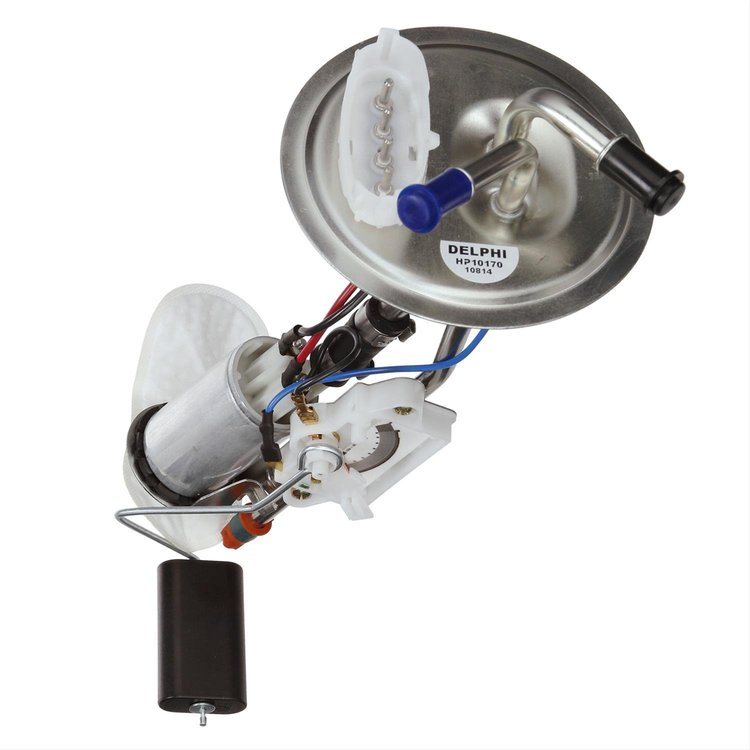

Fuel Pump Hanger/Sender Assembly
$12840
Ships on 09/04/2026
Lowest Price GuaranteeFuel Pump Hanger/Sender Assemblies
Fuel Pump Hanger/Sender Assembly
Delphi HP10170 Features:
Delphi Technologies is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi Technologies is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.OEM-Quality Fuel Hanger and Senders
Delphi's OE-integrated fuel hanger/sender is a complete repair in a box: an OE pump, a fuel level sensor, and fuel/vapor pipes and valves. Our fuel hanger/sender allows for a single opening for a pump, fuel level indicator, and tank vent features to satisfy any engine flow and pressure requirements. Delphi's fuel hanger/sender includes a rollover valve for improved safety and metal tubes routed to avoid contact with the tank or vehicle underbody to eliminate noise and vibration. Each fuel/hanger sender provides positive and continual electrical connectivity with a unique ceramic card resistor assembly.
Part TypeFuel Pump Hanger Assembly
Product LineDelphi Fuel Hanger/Senders
BrandDELPHI
Package Height5.12
Package Width7.68
Package Length15.68
Weight1.83 PG
Part CategoryReplacement Parts
Item GradeStandard Replacement
Outlet Size0.375 in (9.5 mm)
Outlet Quantity (# Of Ports/Lines)2
Amp6
Terminal Type4 Pin Connector
Connector Shape/TypeOval/Male
Resistance At Empty (Ohms)10
Inlet TypeStrainer
Strainer IncludedYes
Pump TypeTurbine
Strainer LocationExternal
Flow Rate32 gal/hr
Package ContentsFuel Pump and Sender Assy w/FLSA, Seal, Lock Ring, Instruction Sheet
Relief Pressure73-109 psi
Meets Or Exceeds Original Equipment Manufacture SpecificationsYes
Gasket/Seal IncludedYes
Outlet TypeQuick Connect
Part FitmentDirect Fit
Volts12 vDC
System Pressure36 psi
Resistance At Full (Ohms)160
Vendor Part NumberHP10170
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
