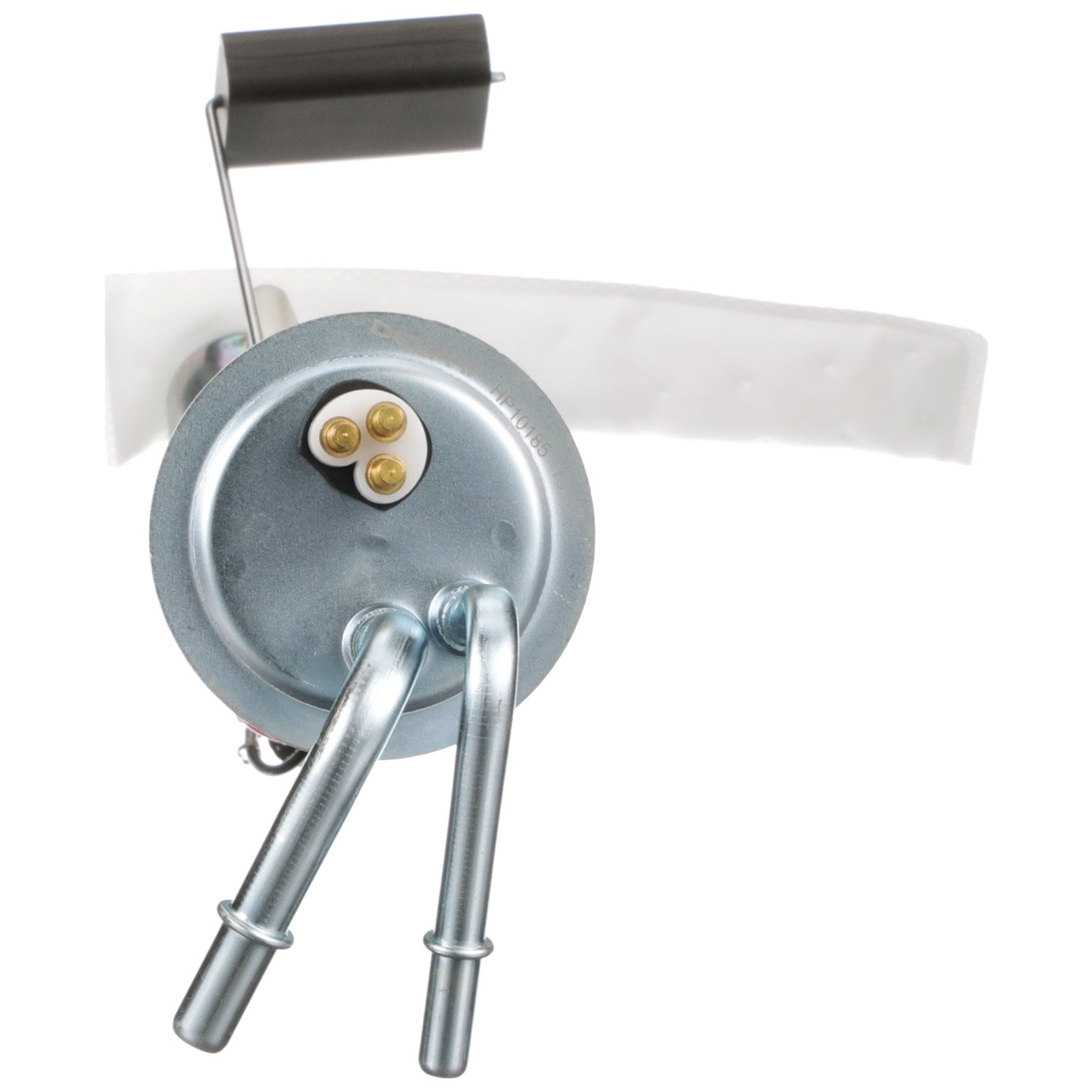

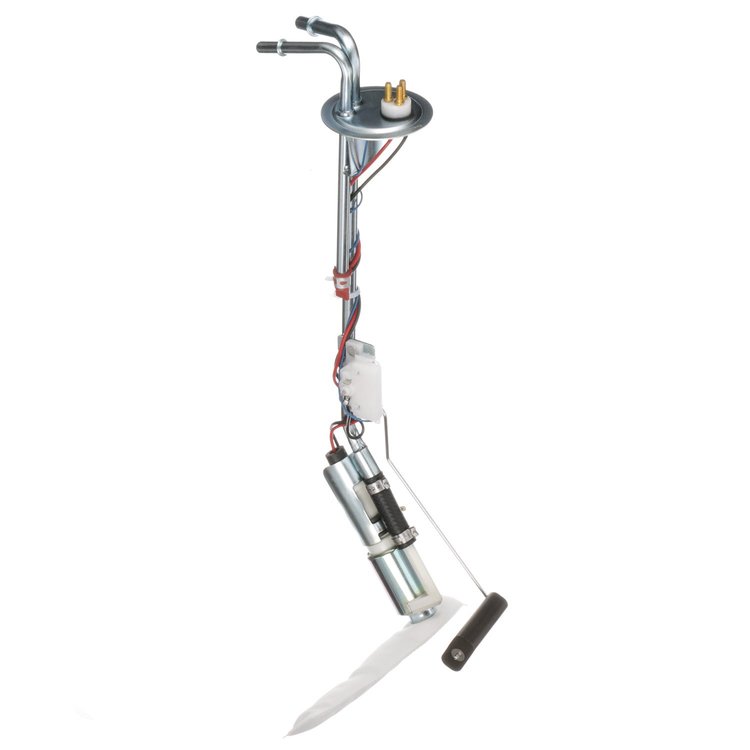

This fuel pump hanger assembly replaces the factory hanger, sender, and float on 1987-1989 Ford Bronco.

Fuel Pump Hanger Assembly Specs:

• Average Current Draw: 7 amps.
• Average Flow Rating: 52 GPH.
• Connector Gender: Male.
• Connector Shape: Triangle.
• Fuel Pump Included: Yes.
• Fuel Sending Unit Included: Yes.
• Fuel Tank Pressure Sensor Included: No.
• Fuel Type: Gas.
• Gasket or Seal Included: Yes.
• Gasket or Seal Material: Nitrile Rubber.
• Grade Type: Premium.
• In Tank or External: In Tank.
• Inlet Quantity: 1.
• Inlet Type: Strainer.
• Internal or External Strainer: External.
• Lock Ring Included: No.
• Material: Metal.
• Maximum Pressure: 73 psi.
• Minimum Pressure: 36 psi.
• Mounting Hardware Included: No.
• Negative Ground: No.
• Outlet Outside Diameter: 0.375 in.
• Outlet Quantity: 2.
• Outlet Type: Quick Connect.
• Pump Design: Turbine.
• Pump Type: Electric.
• Resistance Ohms Empty: 15 ohms.
• Resistance Ohms Full: 160 ohms.
• Strainer Included: Yes.
• Terminal Gender: Male.
• Terminal Quantity: 3.
• Terminal Type: Pin.
• Voltage: 12 volts.
