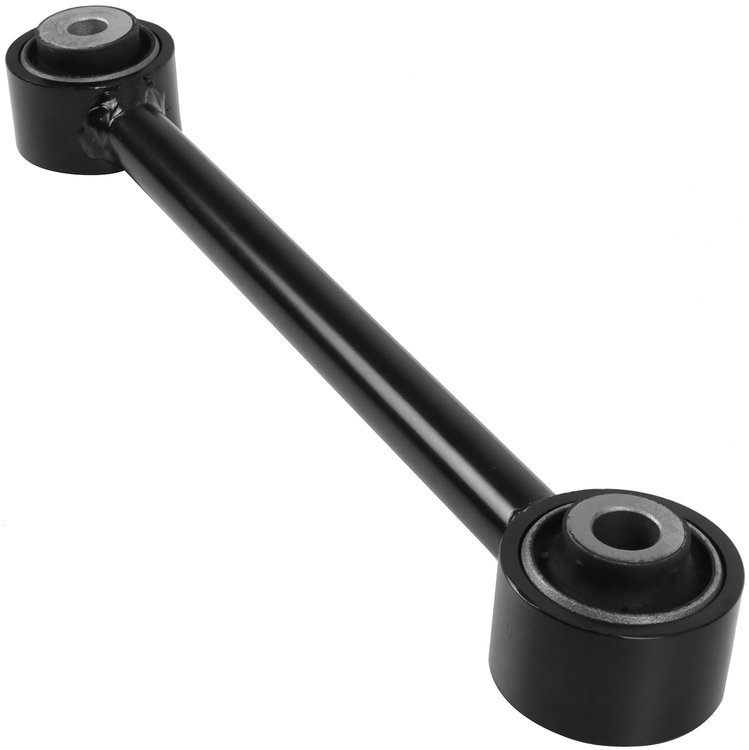

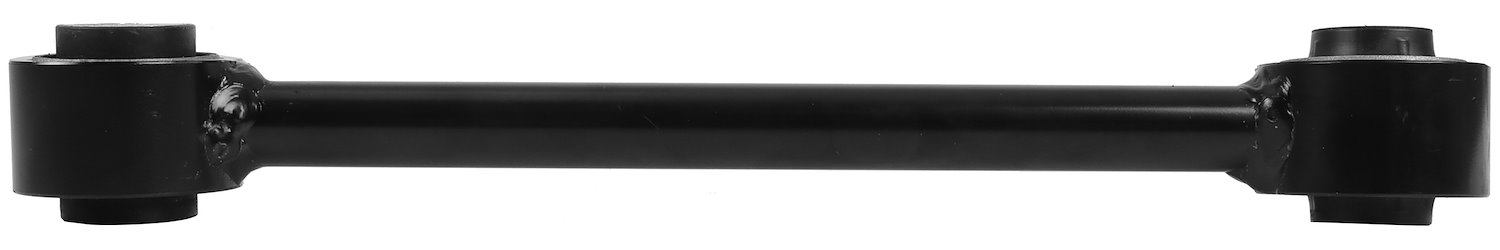

SUSPENSION CONTROL ARM
InfoVehicle Info Needed
DELPHIPART NUMBER: 117-TC8401

SUSPENSION CONTROL ARM

$6422
ShippingShips on 11/02/2026
Lowest PriceLowest Price Guarantee

Suspension Control Arm
  • 2014-2020 Acura MDX, 2017-2026 Honda Ridgeline, 2022 Honda Pilot
  • 3.5L V6 Engine
  • 0.48 in. Bushing Inside Diameter
  • 1.77 in. Bushing Length
  • Rubber Bushings
  • Steel
  • Painted
  • Sold Individually

    The rear left/driver side upper forward suspension control arm is a direct-fit replacement for 2014-2026 Acura MDX, Honda Ridgeline, Pilot. The control arm is the hinge between the wheel assembly and the chassis, carrying braking, cornering and bump loads while keeping the wheel located. Worn bushings or a bent arm usually show up as clunking over bumps, vague steering and uneven tire wear. It is 13.4 in. long.

    Delphi TC8401 Suspension Control Arm Features:

    • Fits 2014-2020 Acura MDX, 2017-2026 Honda Ridgeline, 2022 Honda Pilot with the 3.5L V6 engine
    • The control arms undergo crack detection and ultrasonic flaw detection to ensure materials match OE specifications.
    • The ball studs are machined to micron tolerances for durability and smooth joint operation.
    • Corrosion protection is applied to each part.
    • Bushings are included.
    • Designed for the rear left/driver side upper forward position only; the opposite position uses its own part number.
  • Part TypeSuspension Control Arm
    BrandDELPHI
    Package Height2.83
    Package Width3.58
    Package Length14.96
    Weight2.24 PG
    Part CategoryReplacement Parts
    ColorBlack
    QuantitySold Individually
    MaterialSteel
    Part FitmentDirect Fit
    FinishPainted
    Vendor Part NumberTC8401
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
