Made in USA

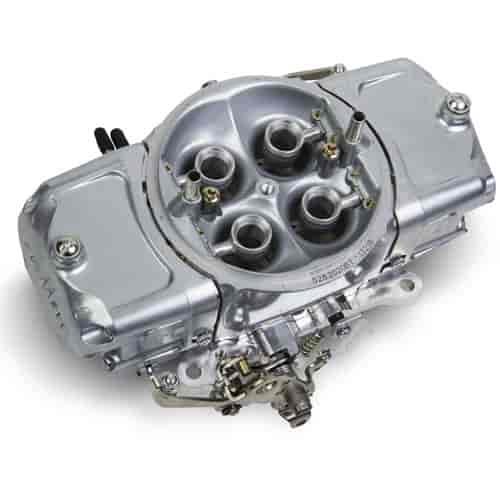

Mighty Demon Blow-Thru Carburetor 650 cfm
Product Discontinued
DEMON CARBURETIONPART NUMBER: 333-5282020BT

Mighty Demon Blow-Thru Carburetor 650 cfm

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

650 cfm
    Mighty Demon Blow-Thru Carburetor
  • 650 cfm
    Available in 650, 750, and 850 cfm, Mighty Demon Blow-Thru Carburetors operate with up to 18 psi of boost. They increase the vacuum signal to the carb under boost to enrich calibration. Metering blocks have .078" power valve channel restrictors (others have .059"), and fuel bowls have solid nitrophyl floats and .130" needle-and-seat valves (.110" is standard).

    The baseplate with Idle-Eze has machined channels that introduce boost pressure to four grooves on the throttle shafts. This innovation seals the shafts and prevents pressure from escaping. Even at higher RPM, the main circuits sustain constant BSFC (Brake Specific Fuel Consumption) values and air-fuel ratios. The idle circuits, which are often responsible for part-throttle cruising, provide fine non-boosted drivability.

    Features
  • Billet Aluminum Baseplate & Metering Blocks
  • Mechanical Secondaries
  • Annular Boost Venturii
  • Screw-In Vacuum Fittings (More secure than press-in fittings)
  • 0.078" Valve Channel Restrictor Orifice
  • Built-In Power Valve Blow-Out Protection
  • 0.130" Needle-and-Seat Valves (Greater fuel delivery & flat fuel curve)
  • Large Fuel Bowls with Patented Sight Windows
  • Non-Collapsible Solid Nitrophyl Floats
  • Vacuum Ports (2 constant, 1 ported)
  • Dual Inlets
  • No Choke Horn
  • Metering Blocks with Tunable Jets (Primary and secondary circuits)
  • 4-Corner Idle Adjustability
  • Replaceable Air Bleeds & Idle Feed Restrictors
  • A full line of Demon jets, gaskets and accessories are readily available

    JEGS Easy Kits are designed by JEGS professionals to ensure that you get all the correct parts you need.

Part TypeCarburetor
Product LineDemon Carburetion Mighty Demon Blow-Thru Carburetors
BrandDEMON CARBURETION
Package Height8.0
Package Width11.3
Package Length12.3
Weight13.83 PG
Part CategoryPerformance Parts
Primary Power Valve (Hg)6.5 Hg
Primary Discharge Nozzle Size0.028 in (0.7 mm)
ChokeNone
EmissionWithout EGR
Fuel InletDual
Cfm650
Supercharged ApplicationYes
Primary Outer Air Bleed Sizes Included70
Fuel TypeGasoline
New Or RemanufacturedNew
Booster TypeAnnular
Secondary TypeMechanical
FinishClear Dichromate
Secondary Inner Air Bleed Sizes Included36
UsageStreet/Strip
FlangeSquare Bore
Primary Jet Size71
QuantitySold individually
Primary Inner Air Bleed Sizes Included36
MaterialZinc
BarrelFour
Secondary Power ValvePlug
TypeAutomotive
Secondary Outer Air Bleed Sizes Included70
Secondary Discharge Nozzle Size0.028 in (0.7 mm)
Throttle Linkage TypeUniversal
Ford KickdownYes
Carburetor FlangeSquare bore
FuelGasoline
New Or RemanufacturedNew
Secondary Jet Size80
Vendor Part Number5282020BT
Package Qty1
Package TypeEA
