Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
650 CFM

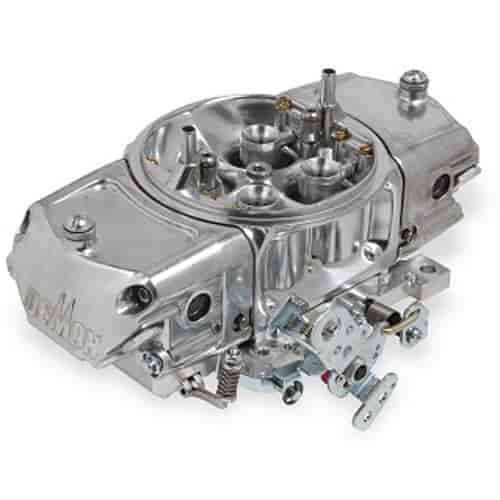

- Aluminum Mighty Demon Carburetor
- 650 CFM
- Mechanical Secondaries
- Down-Leg
Features: - All aluminum polished construction now 40% lighter than the original Demons
- Fuel bowls and main body have been redesigned for a sleeker, more stylish appearance
- Completely re-engineered and re-calibrated for better drivability and full throttle performance
- Re-designed throttle lever with integrated Ford A/T, Chevy 700-R4, and Chrysler kick down options
- Fuel bowls now have dual threaded inlets on each side, dual sight glass windows, and internal baffling for improved fuel slosh control
- Secondary fuel bowls include notched floats and jet extensions to prevent fuel starvation during hard launches
- Changeable idle, high-speed air bleeds & power valve restrictions for precise tuning
- Billet Baseplate with Idle-EzeT allows precision fine tuning of the idle speed resulting in a smoother transition from off-idleSpecs:
- Barrels -4
- Booster -Down Leg
- CFM -650
- Choke -None
- Fuel -Gas
- Fuel Inlet -Dual
- High Speed Air Bleed -36;36
- Idle Air Bleed Size -70;70
- Idle Feed Restriction -30;30
- Material -Aluminum
- Needle and Seat Size -110;110
- Primary Main Jet -68
- Primary Power Valve -4.5
- Primary Pump Arm Size -30cc
- Primary Pump Cam -Pink
- Primary Pump Nozzle Size -31
- Secondaries -Mechanical
- Secondary Main Jet -76
- Secondary Pump Arm Size -30cc
- Secondary Pump Cam -Pink
- Secondary Pump Nozzle Size -31
- Throttle Bore -1.688"
- Venturii Size -1.250"
Part TypeCarburetor
BrandDEMON CARBURETION
Package Height7.6
Package Width11.3
Package Length14.0
Weight9.23 PG
Part CategoryPerformance Parts
UsageStreet/Strip
FlangeSquare Bore
ChokeNone
EmissionWithout EGR
Primary Main Jet68
MaterialAluminum
Fuel InletDual
BarrelFour
Cfm650
Supercharged ApplicationNo
Fuel TypeGasoline
Primary Power Valve4.5
TypeAutomotive
Primary Pump Arm Size30cc
Primary Pump Nozzle Size31
Secondary Pump CamPink
Secondary Pump Nozzle Size31
Secondary Main Jet76
Part FitmentUniversal
Secondary Pump Arm Size30cc
Primary Pump CamPink
FinishShiny
Vendor Part NumberMAD-650-MS
Package Qty1
Package TypeEA
