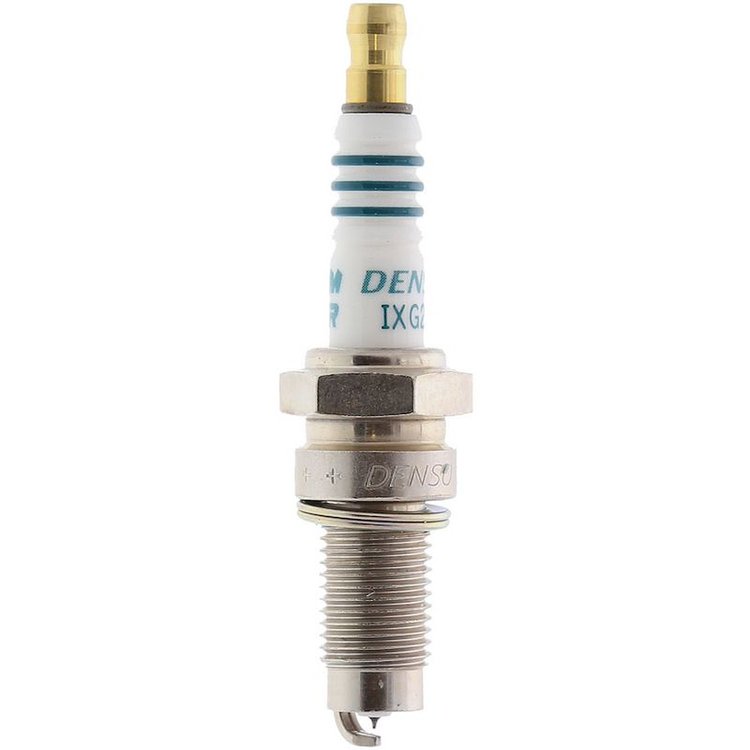

5395 Iridium Performance IXG27 Spark Plug, Heat Range: 27
Product Discontinued
DENSOPART NUMBER: 313-5395

5395 Iridium Performance IXG27 Spark Plug, Heat Range: 27

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

12mm Thread x 22mm Reach
18mm Hex
Flat Seat
Iridium Performance IXG27 Spark Plug
  • Heat Range: 27
  • Tapercut, U-Groove
  • Flat Seat
  • 12.00mm Thread Diameter
  • Copper Center Core Material
  • Sold Individually

    Denso 5395 Features:

    • Resistance: 5000.0
    • Ground Electrode Tip Design: Tapercut, U-Groove
    • Ground Configuration: Standard
    • Ground Electrode Core Material: Nickel
    • Center Electrode Core Material: Copper
    • Center Electrode Tip Material: Iridium
    • Pre-Gap Size: 0.7 mm
    • Ground Electrode Quantity: 1
    • Hex Size: 18.0 mm
    • Manufacturer Heat Range: 27
    • Seat Type: Flat
    • Reach: 22.00 mm
    • Thread Diameter: 12.00 mm


  • The fundamental design of this new generation of Denso Iridium Power spark plugs retains the proven features used in Denso's OE products and combines a revolutionary Iridium alloy with laser welding technology that allows Denso to harness the power of Iridium. Using Iridium, which is six times harder and eight times stronger than platinum, the tip can be shrunk to only 0.4mm. This means the voltage requirements are decreased while firing performance is greatly improved. A U-Groove has been cut inside the ground electrode to maintain the large volume of space required to form the nucleus of a flame. While still keeping the required voltage low, this powerful technology enables excellent firing performance without increasing the spark gap.

    Show More

    The tip of the ground electrode has been cut to form a taper. This greatly improves firing performance by reducing quenching. The extreme hardness and high melting point of Iridium prevented the use of this incredible metal until Denso perfected the Laser Welding Process, which provides a 360° seal so reliable the electrode resists wear even in the harshest conditions.

    Features:

    • Iridium Alloy for a durable, long life design
    • Minimal Firing Resistance and Maximum Firing Performance
    • 360 Degree Laser welded for Superior Electrode Performance
    • Available in a Wide Range of Heat Ranges and Fitments

      Heat Range
      Hot          Cold
      91416202224272931323435



    Part TypeSpark Plug
    Product LineDenso Iridium Power Spark Plugs
    BrandDENSO
    Package Height0.96
    Package Width0.96
    Package Length3.35
    Weight0.09 PG
    Part CategoryReplacement Parts
    Part FitmentSemi Universal
    Vendor Part Number5395
    Package Qty1
    Package TypeEA
