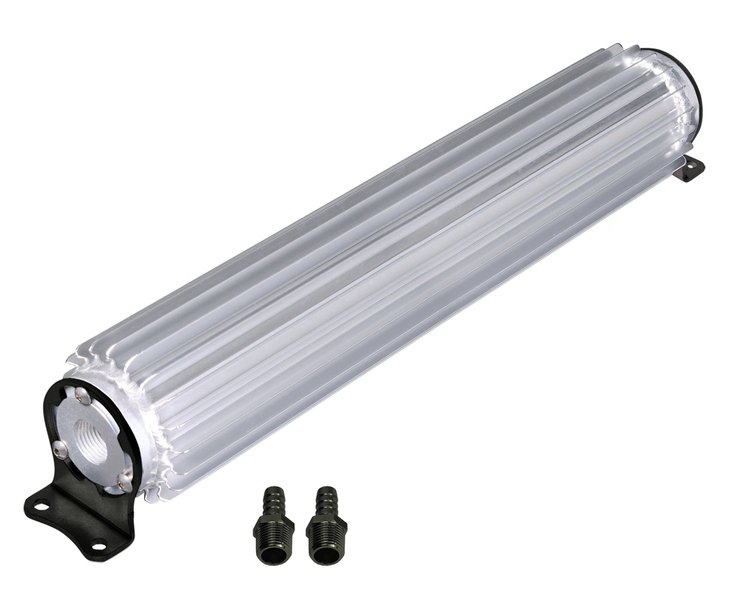

Heat Sink Cooler L: 17-1/4" x W: 2-3/16" x D: 3-1/4"
InfoVehicle Info Needed
DERALEPART NUMBER: 259-13251

Heat Sink Cooler L: 17-1/4" x W: 2-3/16" x D: 3-1/4"

$7349
ShippingShips on 11/03/2026
Lowest PriceLowest Price Guarantee

Single Pass Coolers
    Heat Sink Cooler
  • L: 17-1/4" x W: 2-3/16" x D: 3-1/4"
  • 3/8'' NPT Inlets/Outlets

    Specifications:
  • Cooler style: Heat Sink
  • Construction: Aluminum
  • Inlet size: Single 3/8" NPT
  • Fitting size: 3/8" barb
  • Length: 17-1/4"
  • Width: 2-3/16"
  • Depth: 3-1/4"
  • Mounting: 16-5/8" x 1-3/8"
  • Capacity: 32.2 in^3

    The internal and external cooling fins in these Derale Cooling Products Heat Sink Coolers provide maximum cooling efficiency without relying on direct airflow. Their compact diameter means they can be mounted in a variety of locations, such as on the frame rail next to the transmission, directly under the radiator, under the floorboards, etc. The rugged aluminum extrusion features welded ends for long service life in even the toughest environments. These coolers are offered in several lengths with 3/8 in. or 1/4 in. inlets to better fit your specific application. Heat sink coolers are recommended for transmission, power steering, fuel or differential cooling applications.

Part TypeFluid Cooler
Product LineDerale Heat Sink Coolers
BrandDERALE
Package Height3.6
Package Width3.7
Package Length18.1
Weight2.0 PG
Part CategoryAccessories
Overall Thickness3.25 in (82.6 mm)
Overall Height2.188 in (55.6 mm)
Outlet Size3/8 NPT
QuantitySold individually
Cooler ConstructionHeat sink
Inlet AttachmentFemale Threads
Inlet Size (In.)3/8 NPT
Cooler FinishNatural
Number Of Cooling Rows1
Outlet AttachmentFemale Threads
Overall Width17.25 in (438.2 mm)
Cooler MaterialAluminum
Part FitmentUniversal
Vendor Part Number13251
Package Qty1
Package TypeEA
