Vehicle Info NeededDERALEPART NUMBER: 259-13306

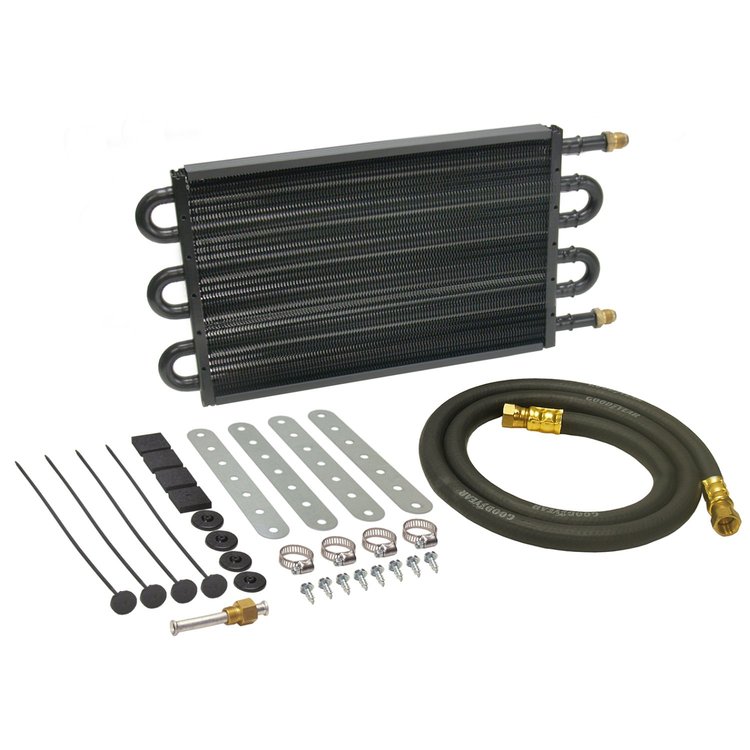

Series 7000 Tube & Fin Cooler Kit
$10290
Ships on 09/09/2026
Lowest Price GuaranteeTube & Fin Cooler Kits
Series 7000 Tube & Fin Cooler KitInlet Size: -6AN GVW: 15500 13-5/8"W x 7-5/8"H x 3/4"D 6 Pass Complete Hardware Kit Included
- Cooler style: Tube & Fin
- Construction: Copper tube and aluminum fin
- Inlet size: -6AN male
- GVW: 15500
- Width: 13-5/8"
- Height: 7-5/8"
- Depth: 3/4"
- Inlet dim: 6-1/4"
- Mounting: 9-5/8"
- Hose size: 11/32" w/ female -6AN fittings
- Hose length: 4'
- Derale Series 7000 Universal Tube & Fin Coolers feature 1/2" copper tubing expanded into aluminum cooling fins and embossed turbulators which are protected by extruded plastic guards. They are built with -6AN inlets and can be used as a transmission cooler, engine oil, power steering, or fuel cooler with equal efficiency.Features
- Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
- Extruded plastic cooling fin guards
- Available in 2, 4, 6, 8, and 10 pass cooler designs
- 1/2" copper tubing expanded into aluminum cooling fins
- -6AN inlets
Part TypeFluid Cooler
Product LineDerale Series 7000 Universal Tube & Fin Coolers
BrandDERALE
Package Height1.0
Package Width11.5
Package Length24.0
Weight2.92 PG
Part CategoryAccessories
Overall Thickness0.75 in (19.1 mm)
Overall Height7.625 in (193.7 mm)
Outlet Size-6 AN
Inlet Size-6 AN
QuantitySold as a kit
Cooler ConstructionTube and fin
Inlet AttachmentMale Threads
Core Height7.625 in (193.675 mm)
Cooler FinishBlack anodized
Core Thickness0.75 in (19.05 mm)
Number Of Cooling Rows6
Core Width9.625 in (244.475 mm)
Outlet AttachmentMale Threads
Overall Width13.5 in (342.9 mm)
Cooler MaterialAluminum
Vendor Part Number13306
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
