Vehicle Info NeededDERALEPART NUMBER: 259-13312

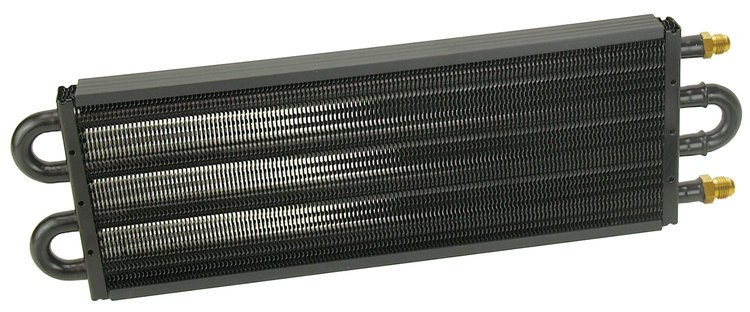

Series 7000 Tube & Fin Cooler
$5989
Ships on 09/09/2026
Lowest Price GuaranteeTube & Fin Cooler Cores
Series 7000 Tube & Fin CoolerInlet Size: -6AN GVW: 14000 17-1/2"W x 5-1/8"H x 3/4"D 4 Pass No Hardware Included
Specifications
- Cooler style: Tube & Fin
- Construction: Copper tube and aluminum fin
- Inlet size: -6AN
- GVW: 14000
- Width: 17-1/2"
- Height: 5-1/8"
- Depth: 3/4"
- Inlet dim: 3-3/4"
- Mounting: 13-3/4"
Part TypeFluid Cooler
BrandDERALE
Package Height0.88
Package Width11.5
Package Length23.88
Weight1.6 PG
Part CategoryAccessories
Overall Thickness0.75 in (19.1 mm)
Overall Height5.125 in (130.2 mm)
Outlet Size-6 AN
Inlet Size-6 AN
QuantitySold individually
Cooler ConstructionTube and fin
Inlet AttachmentMale Threads
Core Height5.125 in (130.175 mm)
Cooler FinishBlack anodized
Core Thickness0.75 in (19.05 mm)
Number Of Cooling Rows4
Core Width13.75 in (349.25 mm)
Outlet AttachmentMale Threads
Overall Width17.5 in (444.5 mm)
Cooler MaterialAluminum
Part FitmentUniversal
Vendor Part Number13312
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
