Vehicle Info NeededDERALEPART NUMBER: 259-13317

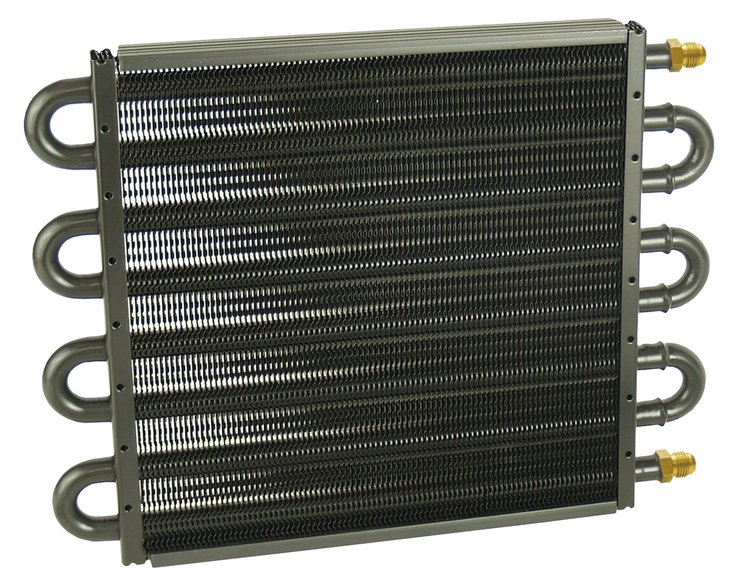

Series 7000 Tube & Fin Cooler
$8601
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeTube & Fin Cooler Cores
Series 7000 Tube & Fin CoolerInlet Size: -6AN GVW: 18200 13-1/2"W x 10-1/4"H x 3/4"D 8 Pass No Hardware Included
Specifications
- Cooler style: Tube & Fin
- Construction: Copper tube and aluminum fin
- Inlet size: -6AN
- GVW: 18200
- Width: 13-1/2"
- Height: 10-1/4"
- Depth: 3/4"
- Inlet dim: 8-3/4"
- Mounting: 9-5/8"
Part TypeFluid Cooler
BrandDERALE
Package Height1.0
Package Width17.5
Package Length24.0
Weight2.3 PG
Part CategoryAccessories
Overall Thickness0.75 in (19.1 mm)
Overall Height10.25 in (260.4 mm)
Outlet Size-6 AN
Inlet Size-6 AN
QuantitySold individually
Cooler ConstructionTube and fin
Inlet AttachmentMale Threads
Core Height10.25 in (260.35 mm)
Cooler FinishBlack anodized
Core Thickness0.75 in (19.05 mm)
Number Of Cooling Rows8
Core Width9.625 in (244.475 mm)
Outlet AttachmentMale Threads
Overall Width13.5 in (342.9 mm)
Cooler MaterialAluminum
Part FitmentUniversal
Vendor Part Number13317
Package Qty1
Package TypeEA
