Vehicle Info NeededDERALEPART NUMBER: 259-13318

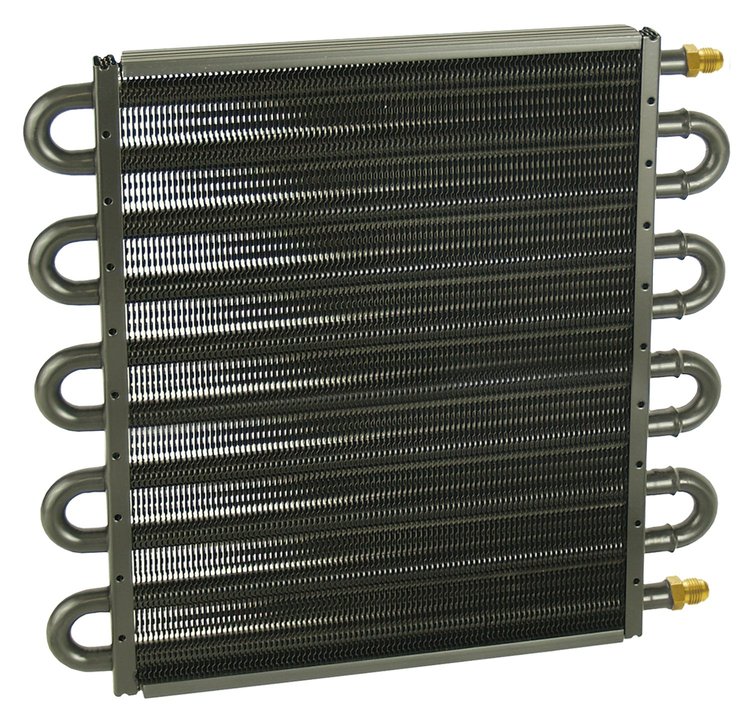

Series 7000 Tube & Fin Cooler
$10137
6 left in stock
Ships Tomorrow
Lowest Price GuaranteeTube & Fin Cooler Cores
Series 7000 Tube & Fin CoolerInlet Size: -6AN GVW: 20500 13-1/2"W x 12-5/8"H x 3/4"D 10 Pass No Hardware Included
Specifications
- Cooler style: Tube & Fin
- Construction: Copper tube and aluminum fin
- Inlet size: -6AN
- GVW: 20500
- Width: 13-1/2"
- Height: 12-5/8"
- Depth: 3/4"
- Inlet dim: 11-1/4"
- Mounting: 9-5/8"
- Derale Series 7000 Universal Tube & Fin Coolers feature 1/2" copper tubing expanded into aluminum cooling fins and embossed turbulators which are protected by extruded plastic guards. They are built with -6AN inlets and can be used as a transmission cooler, engine oil, power steering, or fuel cooler with equal efficiency.Features
- Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
- Extruded plastic cooling fin guards
- Available in 2, 4, 6, 8, and 10 pass cooler designs
- 1/2" copper tubing expanded into aluminum cooling fins
- -6AN inlets
Part TypeFluid Cooler
Product LineDerale Series 7000 Universal Tube & Fin Coolers
BrandDERALE
Package Height2.0
Package Width18.0
Package Length24.0
Weight2.78 PG
Part CategoryAccessories
Overall Thickness0.75 in (19.1 mm)
Overall Height12.625 in (320.7 mm)
Outlet Size-6 AN
Inlet Size-6 AN
QuantitySold individually
Cooler ConstructionTube and fin
Inlet AttachmentMale Threads
Core Height12.625 in (320.675 mm)
Cooler FinishBlack painted
Core Thickness0.75 in (19.05 mm)
Number Of Cooling Rows10
Core Width11.25 in (285.75 mm)
Outlet AttachmentMale Threads
Overall Width13.5 in (342.9 mm)
Cooler MaterialCopper/Aluminum
Part FitmentUniversal
Vendor Part Number13318
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
