Vehicle Info NeededDERALEPART NUMBER: 259-13502

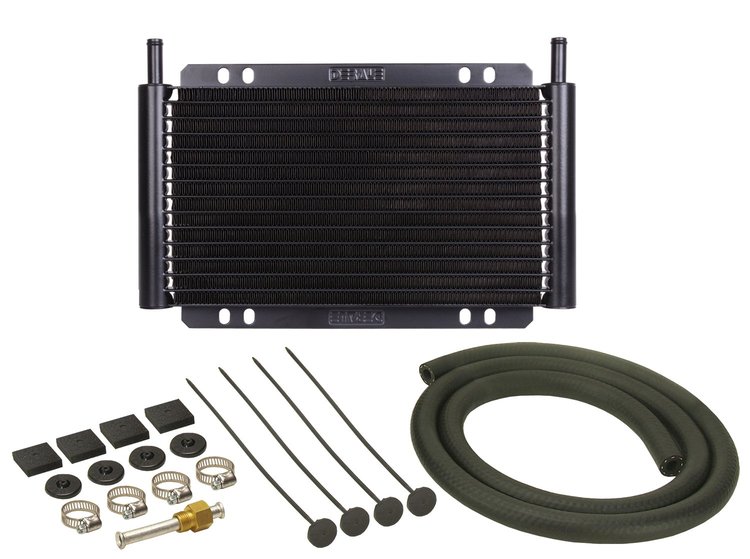

Series 8000 Plate & Fin Cooler Kit 17500 GVW
$10438
8 left in stock
Ships Tomorrow
Lowest Price GuaranteePlate & Fin Transmission Cooler Kits
- Series 8000 Plate & Fin Cooler Kit
- 17500 GVW
- 11''W x 7-1/4''H x 7/8''D
Specifications: - Cooler style: Plate & Fin
- Construction: Aluminum
- Inlet size: 11/32" barb
- GVW: 17500
- Width: 11"
- Height: 7-1/4"
- Depth: 7/8"
- Inlet dim: 10-1/4"
- Mounting: 6-3/4" x 6-1/8"
- Hose size: 11/32"
- Hose length: 4'
Part TypeAuto Trans Oil Cooler
BrandDERALE
Package Height2.2
Package Width11.8
Package Length13.6
Weight2.5 PG
Part CategoryAccessories
Overall Thickness0.875 in (22.2 mm)
Overall Height7.25 in (184.2 mm)
QuantitySold individually
Cooler ConstructionPlate
Inlet AttachmentHose barb
Core Height7.5 in (190.5 mm)
Cooler FinishBlack painted
Core Thickness0.75 in (19.05 mm)
Number Of Cooling Rows6
Core Width11 in (279.4 mm)
Outlet AttachmentHose barb
Overall Width11 in (279.4 mm)
Cooler MaterialAluminum
Part FitmentUniversal
Vendor Part Number13502
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
