Vehicle Info NeededDERALEPART NUMBER: 259-13504

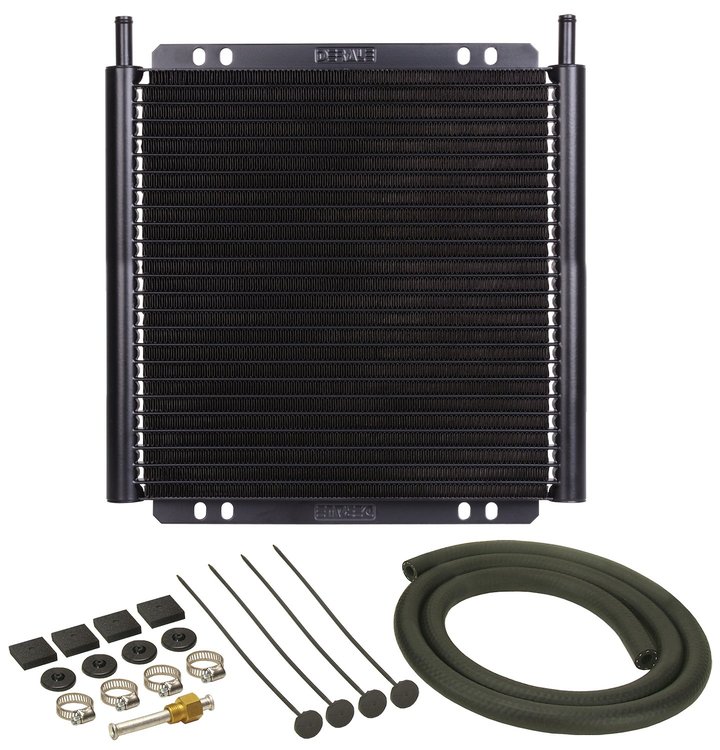

Series 8000 Plate & Fin Cooler Kit 22500 GVW
$12043
More than 10 available
Ships Tomorrow
Lowest Price GuaranteePlate & Fin Transmission Cooler Kits
- Series 8000 Plate & Fin Cooler Kit
- 22500 GVW
- 11''W x 12''H x 7/8''D
Specifications: - Cooler style: Plate & Fin
- Construction: Aluminum
- Inlet size: 11/32" barb
- GVW: 22500
- Width: 11"
- Height: 12"
- Depth: 7/8"
- Inlet dim: 10-1/4"
- Mounting: 6-3/4" x 10-1/2"
- Hose size: 11/32"
- Hose length: 4'
Part TypeAuto Trans Oil Cooler
BrandDERALE
Package Height2.2
Package Width13.1
Package Length18.4
Weight3.21 PG
Part CategoryAccessories
Overall Thickness0.875 in (22.2 mm)
Overall Height12 in (304.8 mm)
QuantitySold individually
Cooler ConstructionPlate
Inlet AttachmentHose barb
Core Height11.25 in (285.75 mm)
Cooler FinishBlack painted
Core Thickness0.75 in (19.05 mm)
Number Of Cooling Rows10
Core Width11 in (279.4 mm)
Outlet AttachmentHose barb
Overall Width11 in (279.4 mm)
Cooler MaterialAluminum
Part FitmentUniversal
Vendor Part Number13504
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
