Vehicle Info NeededDERALEPART NUMBER: 259-13611

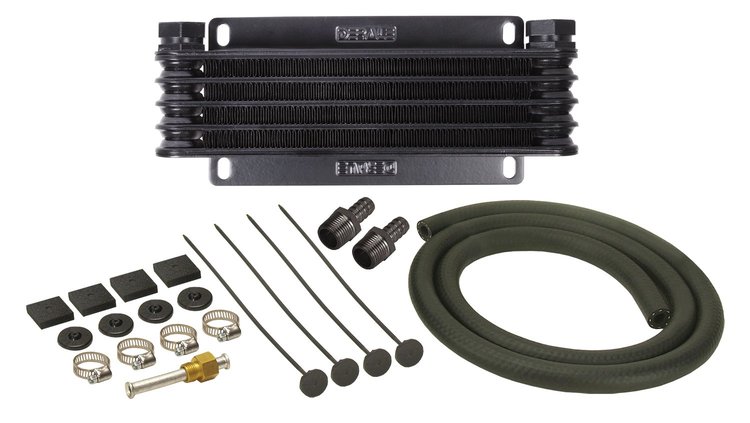

Plate AND Fin Cooler Kit 11 x 4 x 1 1/4
$11240
More than 10 available
Ships Today
Lowest Price Guarantee- Plate AND Fin Cooler Kit 11 x 4 x 1 1/4
Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers is no exception, featuring strong furnace-brazed construction, 1 1/4" wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 1/2" NPT female cooler ports and includes 1/2" NPT x 3/8" hose barb adapters. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.13611-Illustration.jpgEmbossed turbulators inserted in each tube agitate fluid for maximum heat transfer; Extruded plastic cooling fin guards; Improves transmission performance; Sturdy furnace-brazed aluminum construction; 5 row cooler design; 1-1/4" turbulators maximize cooling & minimize pressure drop; New 1/2" NPT female cooler fittings; 1/2" NPT x 3/8" hose barb adapters included; 14000 GVW rated; Complete hardware kit included; Fluid Capacity: 3 oz.;
Part TypeAuto Trans Oil Cooler
BrandDERALE
Package Height2.0
Package Width8.0
Package Length18.3
Weight2.44 PG
Part CategoryAccessories
Overall Thickness1.25 in (31.8 mm)
Overall Height3.875 in (98.4 mm)
Outlet Size1/2 NPT
QuantitySold as a kit
Cooler ConstructionTube and fin
Inlet AttachmentFemale Threads
Inlet Size (In.)1/2 NPT
Cooler FinishBlack painted
Core Thickness1.25 in (31.75 mm)
Number Of Cooling Rows5
Core Width10.125 in (257.175 mm)
Outlet AttachmentFemale Threads
Overall Width10.125 in (257.2 mm)
Cooler MaterialAluminum
Part FitmentUniversal
Vendor Part Number13611
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
