Vehicle Info NeededDERALEPART NUMBER: 259-13613

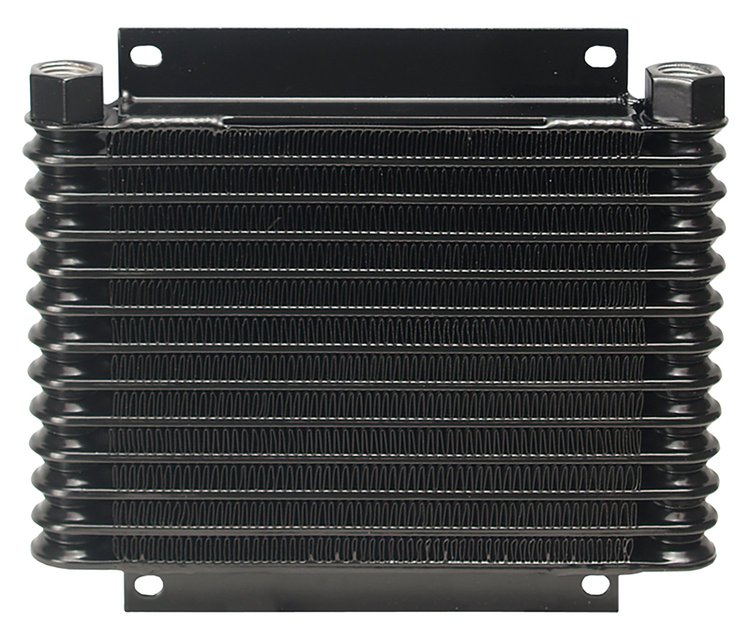

13 Row Series 9000 Plate & Fin Cooler Kit 22000 GVW
$12525
3 left in stock
Ships Tomorrow
Lowest Price GuaranteePlate & Fin Transmission Cooler Kits
- 13 Row Series 9000 Plate & Fin Cooler Kit
- 22000 GVW
- 10-1/8''W x 8-7/8''H x 1-1/4''D
Specifications: - Cooler style: Plate & Fin
- Construction: Aluminum
- Inlet size: 1/2" NPT female
- Fitting size: 3/8" barb
- GVW: 22000
- Width: 9.75"
- Height: 8-7/16"
- Depth: 1-1/4"
- Inlet dim: 8-1/2"
- Mounting: 6-11/16" x 7-5/8"
- Hose size: 3/8"
- Hose length: 4'
Prevent Heat-Related Transmission Failures
Derale Series 9000 Plate and Fin Transmission Coolers and Kits maximize heat transfer while also minimizing pressure drop extending transmission life by preventing heat-related transmission failures.
Part TypeAuto Trans Oil Cooler
Product LineDerale Series 9000 Plate & Fin Transmission Coolers & Kits
BrandDERALE
Package Height2.2
Package Width11.8
Package Length13.6
Weight3.4 PG
Part CategoryAccessories
Overall Thickness1.25 in (31.8 mm)
Outlet Size1/2 NPT
QuantitySold as a kit
Cooler ConstructionTube and fin
Inlet AttachmentFemale Threads
Inlet Size (In.)1/2 NPT
Cooler FinishBlack painted
Core Thickness1.25 in (31.75 mm)
Number Of Cooling Rows13
Outlet AttachmentFemale Threads
Cooler MaterialAluminum
Part FitmentUniversal
Vendor Part Number13613
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
