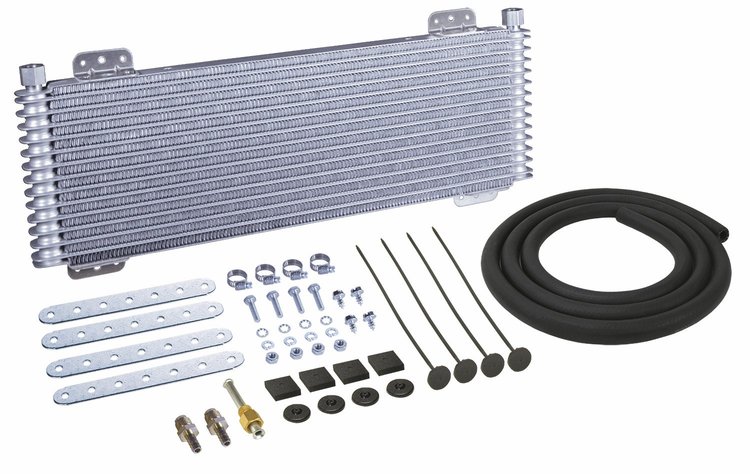

13633 9500 Series Fin and Plate Transmission Cooler Kit [13-Row, Natural]
InfoVehicle Info Needed
DERALEPART NUMBER: 259-13633

13633 9500 Series Fin and Plate Transmission Cooler Kit [13-Row, Natural]

$16128
4 left in stock
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Quick Shift Automatic Transmission Fluid [1-gallon]

JEGS

Quick Shift Automatic Transmission Fluid [1-gallon]

Part Number : 555-28071
$4499$51.99
You Save$7.00
Funnel [18 in. Overall Length]

JEGS

Funnel [18 in. Overall Length]

Part Number : 555-W4034
$499$5.99
You Save$1.00
3-piece SAE Flare Nut line Wrench Set

JEGS

3-piece SAE Flare Nut line Wrench Set

Part Number : 555-W350
$1499$16.99
You Save$2.00
Thread Sealant 1/2 oz Tube

JEGS

Thread Sealant 1/2 oz Tube

Part Number : 555-28011
$539$5.99
You Save$0.60

Plate & Fin Transmission Cooler Kits
9500 Series Transmission Cooler Kit
  • 13-Row Tube and Fin Design
  • Rated Up to 34,000 GVW
  • 22.75 in. W x 8 in. H x 1.25 in. Thick
  • 5/8-18 in. Female Thread Inlet/Outlet
  • Natural Aluminum

    Derale 13633 is a 9500 Series fin and plate transmission cooler kit rated up to 34,000 GVW. This 13-row aluminum cooler uses furnace-brazed construction and embossed turbulators to maximize heat transfer while minimizing pressure drop for light- to medium-duty use and occasional towing.

    Derale 13633 9500 Series Fin and Plate Transmission Cooler Kit Features:

    • Transmission fluid cooler type
    • 13-row tube and fin cooler design
    • Rated up to 34,000 GVW
    • 22.75 in. overall width
    • 8 in. overall height
    • 1.25 in. overall thickness
    • 22.75 in. core width
    • 1.25 in. core thickness
    • 5/8-18 in. female thread inlet and outlet
    • 3/8 in. hose barb adapters included
    • Aluminum construction
    • Natural finish
    • 33,000 BTU rating
    • 20 oz. fluid capacity
    • 250 psi working pressure and 300 psi burst strength
    • Fan not included
    • Sold as a kit
  • Part TypeFluid Cooler
    BrandDERALE
    Package Height2.5
    Package Width9.8
    Package Length26.7
    Weight6.25 PG
    Part CategoryAccessories
    Overall Thickness1.25 in.
    Outlet Size5/8-18 in.
    QuantitySold as a kit
    Cooler ConstructionTube and fin
    Inlet AttachmentFemale threads
    Inlet Size (In.)5/8 in.-18
    Cooler FinishNatural
    Core Thickness1.25 in.
    Number Of Cooling Rows13
    Outlet AttachmentFemale threads
    Cooler MaterialAluminum
    Part FitmentSemi Universal
    Vendor Part Number13633
    Package Qty1
    Package TypeEA
