Made in USA

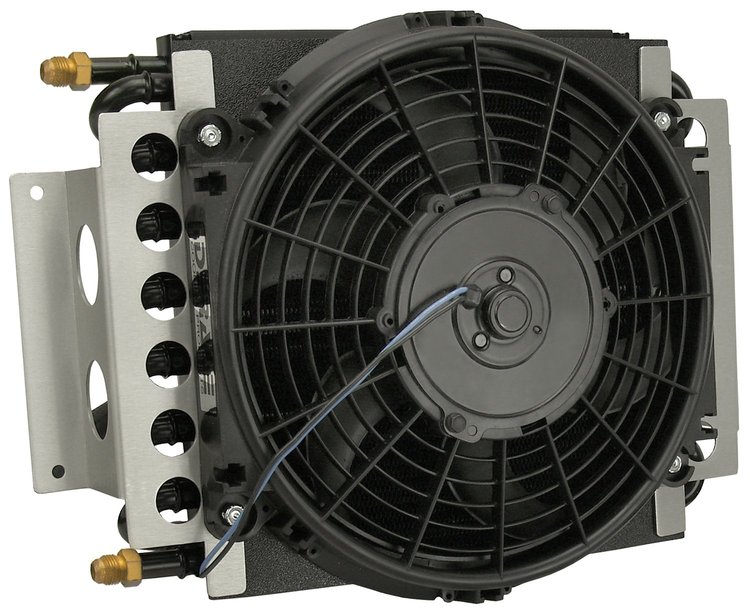

Electra-Cool Trans Cooler Kit Inlet Size: -6AN
InfoVehicle Info Needed
DERALEPART NUMBER: 259-13900

Electra-Cool Trans Cooler Kit Inlet Size: -6AN

$38248
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Trans Cooler Kits
    Electra-Cool Trans Cooler Kit
  • Inlet Size: -6AN
  • 15.75" Width x 11.5" Height x 5" Depth
  • 16 Pass

    Specifications:
  • Cooler style: 16 pass Tube & Fin
  • Inlet size: -6AN
  • Fan size: 10"
  • CFM: 650
  • Amp draw: 5.3
  • Width: 15-3/4"
  • Height: 11-1/2"
  • Depth: 5"
  • Inlet dim: 8-3/4"
  • Mounting: 14-3/4" x 5-1/4"
  • Cooler Fluid Capacity: 19.6 oz
  • Hose size: 3/8"
  • Hose length: 10'
  • Airflow: Puller (reversible)

    Derale Electra-Cool Remote Oil, Transmission & Dual Circuit Coolers

    Keep your engine and transmission running at peak performance with Derale Electra-Cool Remote Coolers. Engineered for efficient fluid temperature control, these units are ideal for high-performance street machines, tow rigs, and off-road applications. The powerful electric fan and high-capacity stacked plate design ensure consistent cooling, even in limited airflow conditions. Whether you're looking to cool engine oil, transmission fluid, or both with a dual circuit system, Derale Electra-Cool Coolers offer versatile and reliable performance. Compact and easy to mount in remote locations, these coolers help extend component life and improve vehicle reliability under demanding conditions.

Part TypeFluid Cooler
Product LineDerale Electra-Cool Remote Coolers
BrandDERALE
Package Height6.8
Package Width14.5
Package Length19.1
Weight10.7 PG
Part CategoryAccessories
Overall Thickness5 in (127 mm)
Overall Height11.5 in (292.1 mm)
Outlet Size-6 AN
Inlet Size-6 AN
Fan QuantitySingle
QuantitySold as a kit
Cooler ConstructionTube and fin
Inlet AttachmentMale Threads
Core Height10 in (254 mm)
Cooler FinishBlack painted
Core Thickness3 in (76.2 mm)
Fan Diameter10 in (254 mm)
Number Of Cooling Rows16
Core Width10 in (254 mm)
Outlet AttachmentMale Threads
Overall Width15.75 in (400.1 mm)
Cooler MaterialCopper/Aluminum
Part FitmentUniversal
Maximum Fan Cfm650 cfm
Vendor Part Number13900
Package Qty1
Package TypeEA
