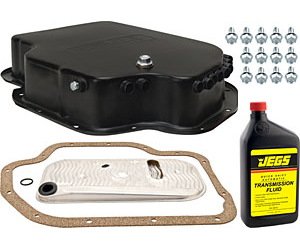

Transmission Pan Cooler Kit GM TH400 Kit Includes:
- Transmission Pan Cooler Kit
- GM TH400
Kit Includes: - Transmission Pan Cooler
- Filter & Gasket Kit
- Pan Bolt Set
- 7 Quarts of Transmission Fluid
Kit Includes: - Derale Transmission Pan Cooler - 259-14201
- JEGS Filter & Gasket Kit - 555-60901
- JEGS Pan Bolt Set - 555-83370
- 7 Quarts of JEGS Transmission Fluid - 555-28070Specifications:

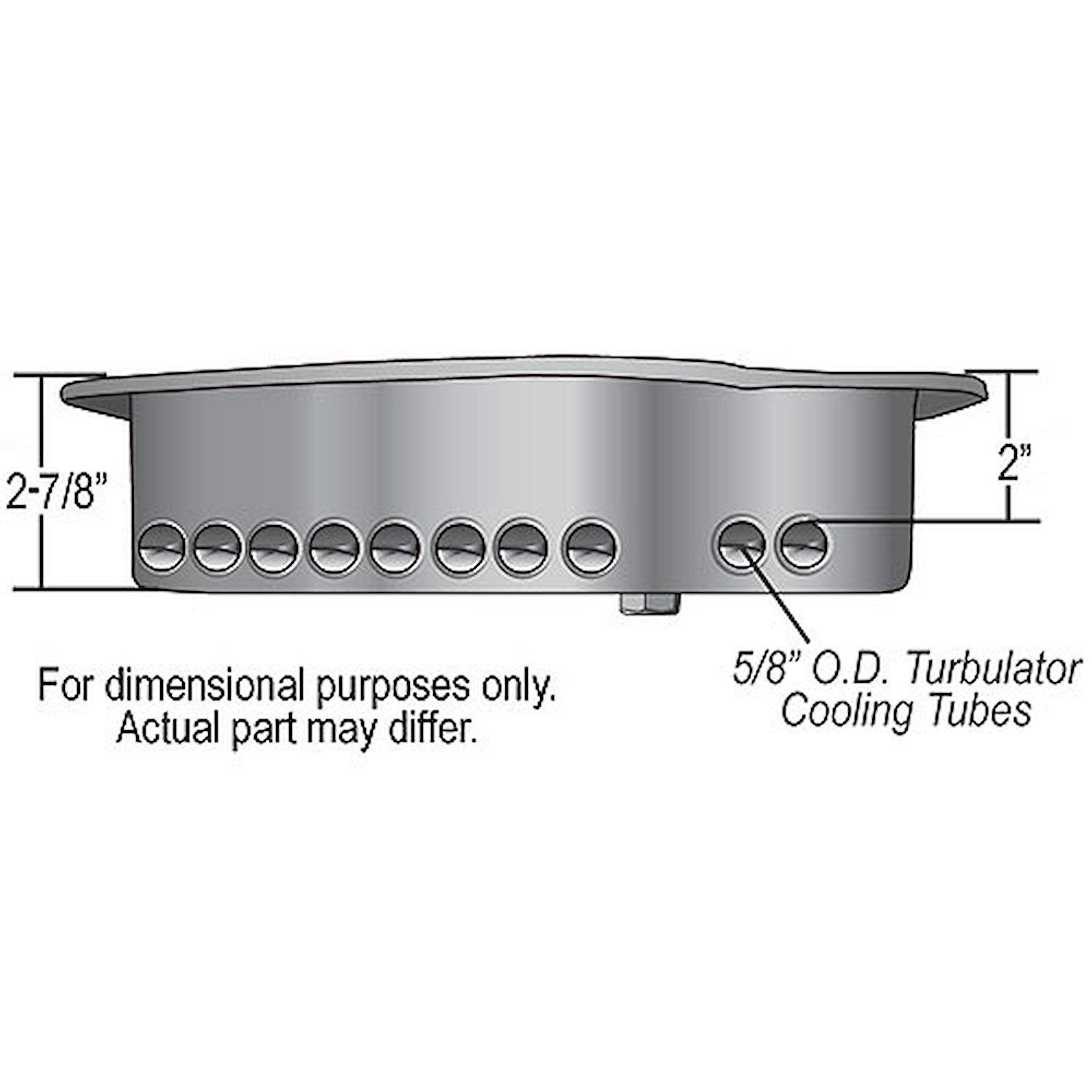

- Pan depth: 2-7/8"
- Tube depth: 2"
- Extra capacity: 3 qts. 8 oz.
- Temp bung size: 1/8" NPT
Derale's Transmission Cooling Pans use the air passing beneath your vehicle to help lower transmission oil temperatures. These pans feature brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling. Each piece is individually pressure tested to ensure a leak-free pan. Most factory filters and pickup tubes can also be utilized. Each pan is finished with a durable black two-stage coating, and also include a neoprene gasket and 1/8" NPT temperature sender plug.
Show More
Features:
- Heavy gauge stamped steel construction
- Two stage heat dissipating black finish
- Reduces fluid temperatures 20-50°F
- Increases fluid capacity
- Patented turbulator cooling tubes add heat transfer capability
- Magnetic drain plug with increased magnetic strength and rubber/steel washer
JEGS Easy Kits are designed by JEGS professionals so you get all the parts you need.
