DERALEPART NUMBER: 259-15660

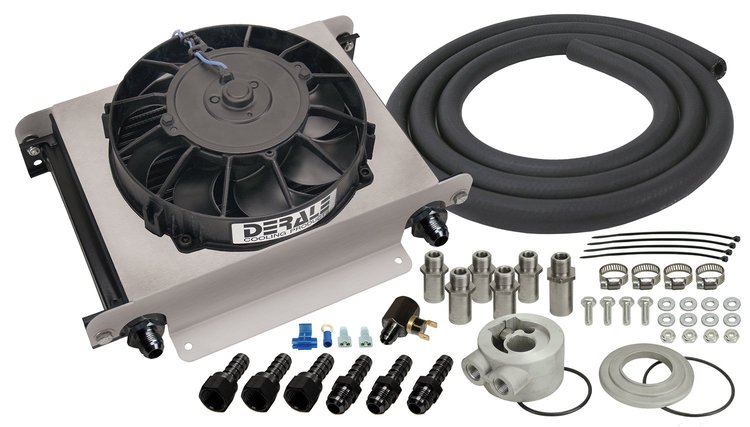

Remote Mount Fluid Cooler Kit -8AN Inlets
$56697
Hyper-Cool Remote Coolers
- Remote Mount Fluid Cooler Kit
- -8AN Inlets
- 13''W x 10''H x 5-5/8''D
Includes: - (2) -8AN & (4) Brass -8AN x 1/2" Hose Barb Fittings
- 180°F In-Line Thermostat
- 10 ft. Hose
- Sleeve Nuts
- Hardware
Specifications: - Cooler style: Stacked Plate
- Inlet size: -10AN / 7/8"-14 o-ring female x -8AN male
- Fan size: 8"
- CFM: 500
- Amp draw: 4.8
- Width: 13"
- Height: 10"
- Depth: 5-5/8"
- Inlet dim: 10"
- Mounting: 7-1/2" x 9"
- Sandwich adapter inlet size: 3/8" NPT
- Hose size: 1/2"
- Hose length: 10'
Derale Hyper-Cool Remote Mount Fluid Coolers are designed to outperform the competition. This compact, yet powerful remote cooler adds a great deal of flexibility and cooling options to enthusiasts everywhere. These coolers easily mount anywhere space permits and should be installed away from the front of the vehicle to avoid blocking airflow to the radiator/condenser."
Show More
Features:
- Mounts anywhere space permits
- 500 cfm or Tornado reversible electric fan supplies optimum airflow
- IP68 rated water/dust proof fan
- Extends engine or transmission life
- High-efficiency 25 row stacked plate cooler
- Clear anodized aluminum shroud
Part TypeFluid Cooler
Product LineDerale Hyper-Cool Remote Mount Fluid Coolers
BrandDERALE
Package Height6.7
Package Width14.7
Package Length19.3
Weight13.85 PG
Part CategoryAccessories
Overall Thickness5.625 in (142.9 mm)
Overall Height10 in (254 mm)
Outlet Size-8 AN
Inlet Size-10 AN
Fan QuantitySingle
QuantitySold as a kit
Cooler ConstructionPlate
Inlet AttachmentFemale O-ring
Cooler FinishBlack painted
Fan Diameter8 in (203.2 mm)
Number Of Cooling Rows25
Outlet AttachmentMale Threads
Overall Width13 in (330.2 mm)
Cooler MaterialAluminum
Part FitmentUniversal
Maximum Fan Cfm500 cfm
Vendor Part Number15660
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
