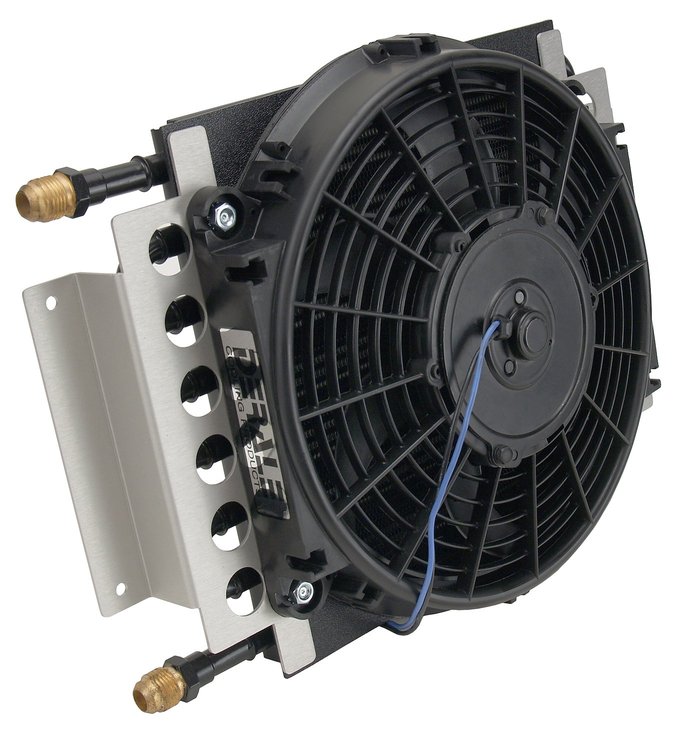

Vehicle Info NeededElectra-Cool Cooler Assembly Inlet Size: -8AN
Ships Today
Lowest Price Guarantee- Electra-Cool Cooler Assembly
- Inlet Size: -8AN
- 15.75" Width x 11.5" Height x 4" Depth
- 8 Pass
Specifications: - Cooler style: 8 pass Tube & Fin
- Inlet size: -8AN
- Fan size: 10"
- CFM: 650
- Amp draw: 5.3
- Width: 15-3/4"
- Height: 11-1/2"
- Depth: 4"
- Inlet dim: 8-3/4"
- Mounting: 14-3/4" x 5-1/4"
- Cooler fluid capacity: 9.8 oz
- Barb size: 1/2"
- Airflow: Puller (reversible)
Derale Electra-Cool Remote Oil/Trans Cooler is recommended for use to effectively and efficiently cool engine oil, transmission fluid, power steering fluid or fuel. The fan assembly ensures optimal surface-to-air heat dissipation even when the vehicle is at a standstill!
Show More
Features:- Mounts anywhere space permits
- Electric fan supplies optimum airflow
- Extends engine or transmission life
- Offered in 16 pass & 8 pass tube & fin cooler core
- Clear anodized aluminum brackets
- 650 CFM reversible Tornado electric fan
- Available with -6AN or -8AN fittings
Cooler Assembly - Includes complete cooler assembly, two aluminum AN fittings (-6AN or -8AN) and two brass hose barb fittings (-6AN x 3/8" barb or -8AN x1/2" barb)
Transmission Cooler Kit - Includes complete cooler assembly, two aluminum AN fittings (-6AN or -8AN), four brass hose barb fittings (-6AN x 3/8" barb or -8AN x 1/2" barb), 180°F In-line thermostat, 10 feet of OEM spec hose, 5/16" Insta-dapt radiator fitting, two compression fittings (3/8" x 3/8" hose barb or 1/2" hose barb), four stainless hose clamps and 1/4" mounting hardware
Engine Cooler Kit - Includes complete cooler assembly, universal thermostatic sandwich adapter and adapter plate, 13/16"-16, 3/4"-16, 18mm and 20mm sleeve nuts, two aluminum -8AN fittings, four brass hose barb fittings (-6AN x 3/8" barb or -8AN x 1/2" barb), 180°F -8AN In-line thermostat, 10 feet of 1/2" OEM spec hose, four stainless hose clamps and 1/4" mounting hardware
Replacement Cores - The cooler core assembly is available as a service replacement in the event of damage or can be used as a stand alone cooler (the fan, brackets, fittings and mounting hardware is not included)
