Made in USA
Atomic-Cool Cooler Assembly Cooler Inlet Size: -8AN
InfoVehicle Info Needed
DERALEPART NUMBER: 259-15850

Atomic-Cool Cooler Assembly Cooler Inlet Size: -8AN

$32565
3 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Cooler Assembly

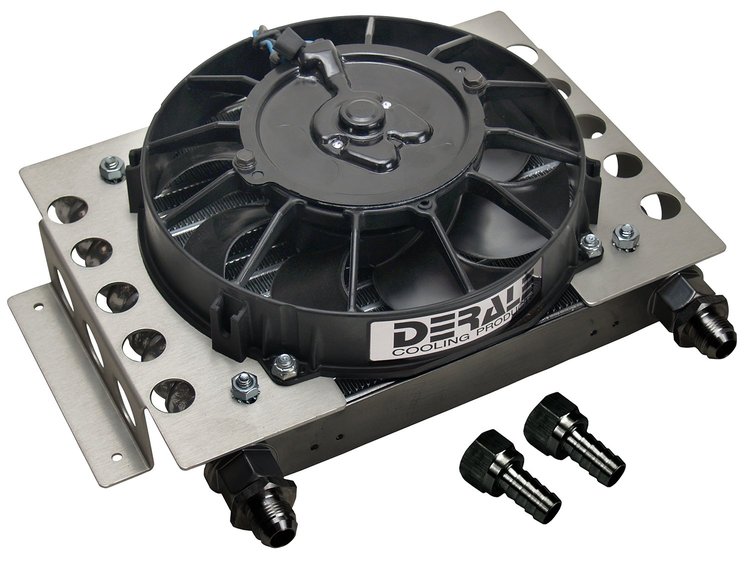

Atomic-Cool Cooler Assembly
  • Cooler Inlet Size: -8AN

    Specifications:

    • Cooler style: Plate & Fin
    • Inlet size: 5/8"-18 o-ring female x -8AN male
    • Fan size: 8"
    • CFM: 500
    • Amp draw: 4.8
    • Width: 12-3/4"
    • Height: 9-3/8"
    • Depth: 4-5/16"
    • Inlet dim: 8-9/16"
    • Mounting: 11-5/8" x 4"
    • Barb size: 1/2"
    • Fin Row Quantity: 15
  • Derale Atomic-Cool Remote Oil & Transmission Coolers are a step up from Tube & Fin type coolers. These Atomic-Cool remote fluid coolers can be mounted anywhere space permits, making them a popular addition for performance cars, hot rods, muscle cars and trucks. The Atomic-Cool is a tried and true workhorse that can keep vital engine and transmission fluid temperatures under control under severe-duty environments.

    Show More

    Features:

    • Mounts Anywhere Space Permits
    • Electric Fan Supplies Optimum Airflow
    • Extends Engine or Transmission Life
    • High-Efficiency OEM Style Plate & Fin Cooler
    • Clear Anodized Aluminum Brackets
    • 500 CFM Tornado Electric Fan
    • Available With -6 AN or -8 AN Fittings



    Part TypeFluid Cooler
    Product LineDerale Atomic-Cool Remote Fluid Coolers
    BrandDERALE
    Package Height5.5
    Package Width11.9
    Package Length16.9
    Weight6.25 PG
    Part CategoryPerformance Parts
    Overall Thickness4 in (101.6 mm)
    Overall Height10 in (254 mm)
    Outlet Size-8 AN
    Inlet Size-8 AN
    Fan QuantitySingle
    QuantitySold as a kit
    Cooler ConstructionPlate
    Inlet AttachmentMale Threads
    Core Height10 in (254 mm)
    Cooler FinishBlack painted
    Core Thickness1.25 in (31.75 mm)
    Fan Diameter8 in (203.2 mm)
    Number Of Cooling Rows15
    Core Width10 in (254 mm)
    Outlet AttachmentMale Threads
    Overall Width12.5 in (317.5 mm)
    Cooler MaterialAluminum
    Part FitmentSemi Universal
    Maximum Fan Cfm400 cfm
    Vendor Part Number15850
    Package Qty1
    Package TypeEA
