Vehicle Info NeededDERALEPART NUMBER: 259-15860

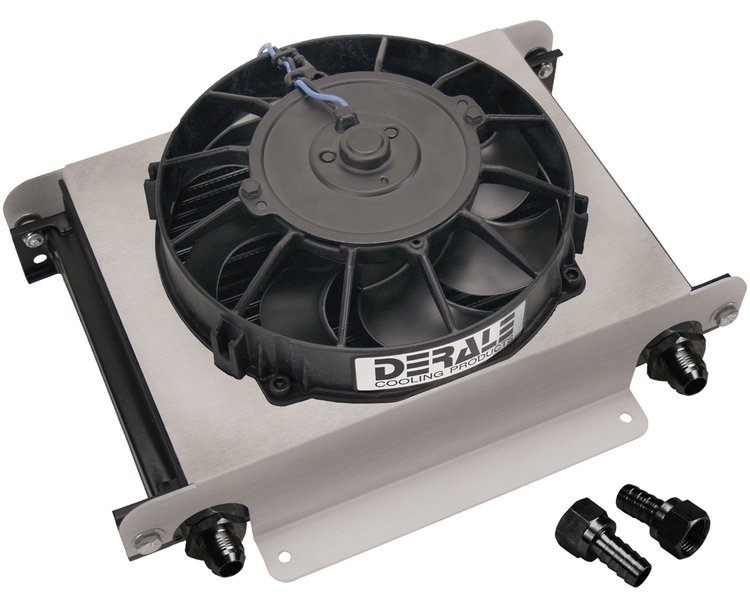

Remote Mount Fluid Cooler Assembly -8AN Inlets
$43988
More than 10 available
Ships Today
Lowest Price GuaranteeHyper-Cool Remote Coolers
- Remote Mount Fluid Cooler Assembly
- -8AN Inlets
- 13''W x 10''H x 5-5/8''D
Specifications: - Cooler style: Stacked Plate
- Inlet size: -10AN / 7/8"-14 o-ring female x -8AN male
- Fan size: 8"
- CFM: 500
- Amp draw: 4.8
- Width: 13"
- Height: 10"
- Depth: 5-5/8"
- Inlet dim: 10"
- Mounting: 7-1/2" x 9"
- Barb size: 1/2"
Part TypeFluid Cooler
BrandDERALE
Package Height6.9
Package Width12.5
Package Length17.7
Weight8.92 PG
Part CategoryAccessories
Overall Thickness5.625 in (142.9 mm)
Overall Height10 in (254 mm)
Outlet Size-8 AN
Inlet Size-8 AN
Fan QuantitySingle
QuantitySold as a kit
Cooler ConstructionPlate
Inlet AttachmentMale Threads
Cooler FinishBlack painted
Fan Diameter8 in (203.2 mm)
Outlet AttachmentMale Threads
Overall Width13 in (330.2 mm)
Cooler MaterialAluminum
Part FitmentUniversal
Maximum Fan Cfm500 cfm
Vendor Part Number15860
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
