Vehicle Info NeededDERALEPART NUMBER: 259-16620

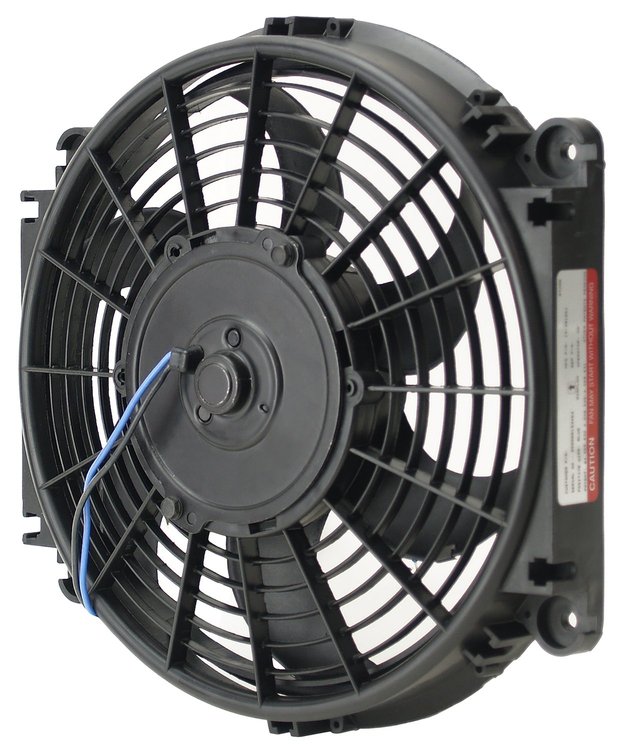

10" Tornado Electric Fan - Standard Hardware Kit 650 CFM
$11629
More than 10 available
Ships on Sep 08, 2026
Lowest Price GuaranteeTornado Single Fans with Standard Hardware Kit
- 10" Tornado Electric Fan - Standard Hardware Kit
- 650 CFM
- Height: 10-5/8"
- Width: 11-1/4"
- Shroud Depth: 1-1/2"
- Overall Depth: 2-1/2"
Specifications: - Fan size: 10"
- CFM: 650
- Amp draw: 5.3
- Width: 11-1/4"
- Height: 10-5/8"
- Depth: 1-1/2"
- Overall depth: 2-1/2"
- Mounting: 9-5/8" x 6-7/8"
- Airflow: Puller (Reversible)
Derale makes it simple to replace your vehicles belt-driven fan thanks to their Tornado Push & Pull-Style Electric Fans. These fans boost your engines performance by drawing less amperage and reducing fuel consumption. Available with Premium Hardware, Thermostat Hardware, or Standard Mounting Hardware kits.
Show More
Features:
- Reliable, efficient high torque motors
- Reversible for puller or pusher options
- Ultra-quiet balanced curved or straight-blade design
- 14'' & 16'' size fans are designed as primary cooling fans that eliminate fuel and horsepower robbing belt driven fans
 Premium Hardware Kit Includes mounting kit, lighted toggle switch and wiring |  Thermostat Hardware Kit Includes mounting kit, 180° thermostat, probe kit, and relay harness |
Part TypeElectric Fan
Product LineDerale Tornado Push & Pull-Style Electric Fans
BrandDERALE
Package Height10.625 in (269.875 mm)
Package Width11.25 in (285.75 mm)
Package Length16.3
Weight3.46 PG
Part CategoryAccessories
Blade MaterialPlastic
Fan QuantitySingle
Number Of Blades6 blades
Shroud MaterialPlastic
Air Conditioning Relay IncludedNo
QuantitySold individually
Mounting Hardware IncludedYes
Thickness2.5 in (63.5 mm)
Fan Diameter10 in (254 mm)
Blade ColorBlack
Amp Draw5.30 amps
Mounting Brackets IncludedYes
Part FitmentSemi Universal
Maximum Fan Cfm650 cfm
Shroud ColorBlack
Vendor Part Number16620
Package Qty1
Package TypeEA
