DERALEPART NUMBER: 259-16622

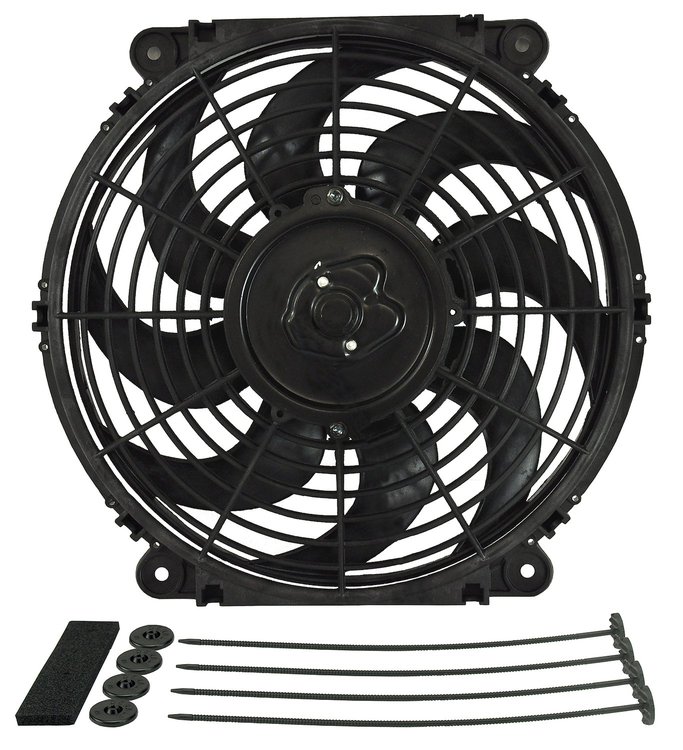

12" Tornado Electric Fan - Standard Hardware Kit 880 CFM
$12242
Tornado Single Fans with Standard Hardware Kit
- 12'' Tornado Electric Fan - Standard Hardware Kit
- 880 CFM
- Height: 11-13/16''
- Width: 12-3/8''
- Shroud Depth: 1-1/4''
- Overall Depth: 2-1/2''
Fan Size: 12'
CFM: 880
Amp Draw: 8.8
Height: 11-13/16'
Width: 12-3/8'
Shroud Depth: 1-1/4'
Overall Depth: 2-1/2'
Mounting: 4 holes; 11-1/4' x 5-1/4'
Derale makes it simple to replace your vehicles belt-driven fan thanks to their Tornado Push & Pull-Style Electric Fans. These fans boost your engines performance by drawing less amperage and reducing fuel consumption. Available with Premium Hardware, Thermostat Hardware, or Standard Mounting Hardware kits.
Show More
Features:
- Reliable, efficient high torque motors
- Reversible for puller or pusher options
- Ultra-quiet balanced curved or straight-blade design
- 14'' & 16'' size fans are designed as primary cooling fans that eliminate fuel and horsepower robbing belt driven fans
Premium Hardware Kit Includes mounting kit, lighted toggle switch and wiring | Thermostat Hardware Kit Includes mounting kit, 180° thermostat, probe kit, and relay harness |
Part TypeElectric Fan
Product LineDerale Tornado Push & Pull-Style Electric Fans
BrandDERALE
Package Height11.5 in (292.1 mm)
Package Width12.5 in (317.5 mm)
Package Length18.0
Weight2.0 PG
Part CategoryAccessories
Blade MaterialPlastic
Fan QuantitySingle
Number Of Blades10 blades
Shroud MaterialPlastic
Air Conditioning Relay IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedYes
Thickness2.5 in (63.5 mm)
Fan Diameter12 in (304.8 mm)
Blade ColorBlack
Amp Draw8.80 amps
Mounting Brackets IncludedYes
Part FitmentSemi Universal
Maximum Fan Cfm880 cfm
Shroud ColorBlack
Vendor Part Number16622
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
