Vehicle Info NeededDERALEPART NUMBER: 259-16626

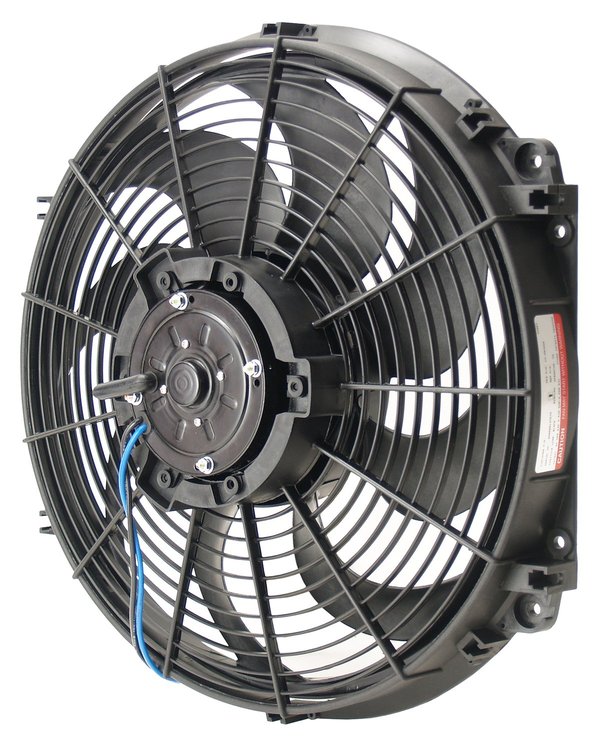

16" Tornado Electric Fan - Standard Hardware Kit 2175 CFM
$16599
More than 10 available
Ships on Nov 02, 2026
Lowest Price GuaranteeTornado Single Fans with Standard Hardware Kit
- 16" Tornado Electric Fan - Standard Hardware Kit
- 2175 CFM
- Height: 15-1/2"
- Width: 16-3/4"
- Shroud Depth: 1-3/4"
- Overall Depth: 3-7/8"
- Fan size: 16"
- CFM: 2175
- Amp draw: 18.4
- Width: 16-3/4"
- Height: 15-1/2"
- Depth: 1-3/4"
- Overall depth: 3-7/8"
- Mounting: 13-3/4" x 9-3/4"
- Airflow: Puller (reversible)
Derale makes it simple to replace your vehicles belt-driven fan thanks to their Tornado Push & Pull-Style Electric Fans. These fans boost your engines performance by drawing less amperage and reducing fuel consumption. Available with Premium Hardware, Thermostat Hardware, or Standard Mounting Hardware kits.
Show More
Features:
- Reliable, efficient high torque motors
- Reversible for puller or pusher options
- Ultra-quiet balanced curved or straight-blade design
- 14'' & 16'' size fans are designed as primary cooling fans that eliminate fuel and horsepower robbing belt driven fans
 Premium Hardware Kit Includes mounting kit, lighted toggle switch and wiring |  Thermostat Hardware Kit Includes mounting kit, 180° thermostat, probe kit, and relay harness |
Part TypeElectric Fan
Product LineDerale Tornado Push & Pull-Style Electric Fans
BrandDERALE
Package Height15.75 in (400.05 mm)
Package Width16.75 in (425.45 mm)
Package Length17.5
Weight7.72 PG
Part CategoryAccessories
Blade MaterialPlastic
Fan QuantitySingle
Number Of Blades10 blades
Shroud MaterialPlastic
Air Conditioning Relay IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedYes
Thickness4.125 in (104.8 mm)
Fan Diameter16 in (406.4 mm)
Blade ColorBlack
Amp Draw18.40 amps
Mounting Brackets IncludedYes
Part FitmentSemi Universal
Maximum Fan Cfm2,175 cfm
Shroud ColorBlack
Vendor Part Number16626
Package Qty1
Package TypeEA
