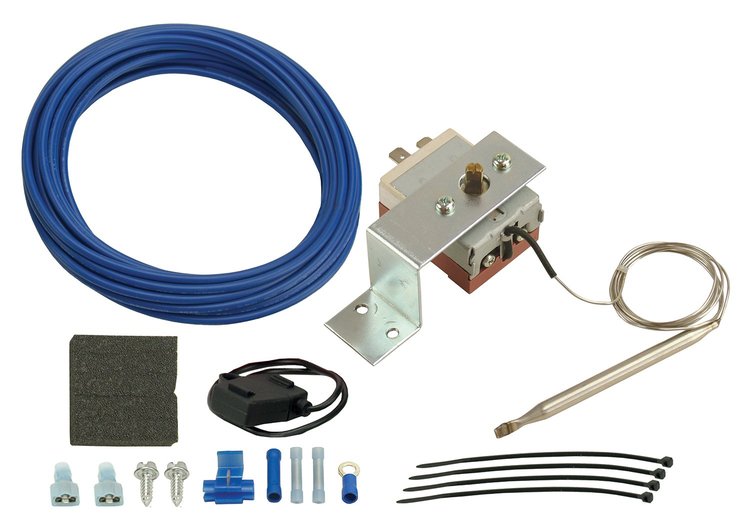

Mechanically Activated Adjustable Electric Fan Controller

Adjustable Turn-On Temp from 32-240°F
Radiator Hose Probe Design

This adjustable mechanical mechanism controlled fan controller features an adjustable turn-on temperature range between 32°F - 240°F with turn-off preset at 10°F below turn-on. Uses capillary tube that installs in radiator inlet tube. Maximum capacity: 16 amps.
Features:
Adjustable turn-on temperature from 32-240°F
Turn-off temperature is preset at 10°F below turn-on temperature
Radiator hose probe design
Rated at maximum 16 amp continuous draw
Note - Operates up to a 16 amp fan or two fans with a combined draw of 16 amps or less

Part TypeElectric Fan Controller

BrandDERALE

Package Height2.5

Package Width4.6

Package Length7.3

Weight0.73 PG

Part CategoryAccessories

Wiring Harness IncludedNo

Thermal Switch StyleAdjustable fan control kit

Sending Unit IncludedYes

Manual Override Switch IncludedNo

Fan QuantitySingle

Adjustment Range (F)32-240 degrees F

Sending Unit StyleRadiator probe

Air Conditioning Relay IncludedNo

QuantitySold as a kit

Relay IncludedNo

Vendor Part Number16769

Package Qty1

Package TypeEA
