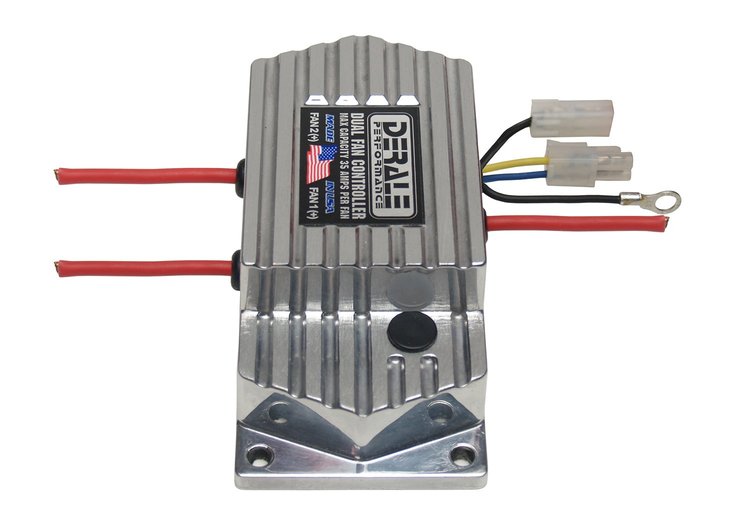

High Amperage Adjustable Dual Electric Fan Controller 150-240°F

$21020
4 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Electric Fan Mounting Bracket Kit [Aluminum]

JEGS

Electric Fan Mounting Bracket Kit [Aluminum]

Part Number : 555-52120
$8499$93.99
You Save$9.00
Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

JEGS

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

Part Number : 555-10560
$4899$53.99
You Save$5.00
30 Amp Relay For Electric Fan or Fuel Pump

JEGS

30 Amp Relay For Electric Fan or Fuel Pump

Part Number : 555-10557
$499$5.99
You Save$1.00
Dual Fan Wiring Harness & Relay Kit 30 Amp [185-degrees on 170-degrees off]

JEGS

Dual Fan Wiring Harness & Relay Kit 30 Amp [185-degrees on 170-degrees off]

Part Number : 555-10570
$6599$71.29
You Save$5.30

High Amperage Adjustable Electric Fan Controllers
High Amperage Adjustable Electric Fan Controller
  • Dual Fan Operation
  • Adjustable Turn-On Temp from 150-240°F
  • 3/8" NPT Threaded Temp Probe

    Replacement Temp Probe 259-16753 requires adapter 259-16737

    Designed with quality and performance in mind, this High Amperage Dual Fan Controller breaks new ground in the industry of electric fan controllers. 100% USA made, a bulletproof design, 35 amp per fan amperage rating, adjustability from 150°-240°F, and a die cast bright finish aluminum cap, come together to make this dual fan controller stand out from the crowd. It's capable of controlling two separate 35 amp fans at different turn-on temperatures, with only a single probe. The first electric fan will be activated at the temperature set by the user followed by the second electric fan when the temperature becomes 10°F warmer. Each electric fan will turn off at 10°F below its turn-on temperature. Kit comes complete with wiring harness, fusible link, all necessary electrical connectors and 3/8" NPT thread-in probe.

    Features:

    • Adjustable turn-on temperature from 150-240°F
    • Rated at a maximum 35 amps per fan
    • Activates fan #1 at adjusted temperature
    • Activates fan #2 at 10°F warmer than fan #1
    • Turn-off temperatures are preset at 10°F below turn-on temperatures
    • Die cast aluminum housing
    • AC override circuit included
    • Thread-in 3/8" NPT probe

      Specifications:
    • Amp Rating: 35 amp per fan
    • Width: 2-3/8"
    • Length: 4-5/8"
    • Height: 1-9/16"
    • Derale makes mounting and controlling your electric cooling fan easy with a variety of controllers, thermostats, and mounting accessories to work with your vehicles cooling system. Derale is dedicated to providing the highest quality products and everyday value in the most complete performance cooling line in the industry.

    Part TypeElectric Fan Controller
    Product LineDerale Fan Controllers and Accessories
    BrandDERALE
    Package Height2.3
    Package Width4.4
    Package Length7.2
    Weight1.38 PG
    Part CategoryPerformance Parts
    Wiring Harness IncludedYes
    Sending Unit IncludedYes
    Manual Override Switch IncludedNo
    Fan QuantityDual
    Adjustment Range (F)150-240 degrees F
    Air Conditioning Relay IncludedYes
    QuantitySold as a kit
    Sending Unit Thread Size3/8-18 NPT
    Thermal Switch StyleAdjustable fan control kit
    Sending Unit StyleThread-in
    Part FitmentSemi Universal
    Relay IncludedYes
    Vendor Part Number16789
    Package Qty1
    Package TypeEA
