Vehicle Info Needed

DERALEPART NUMBER: 259-16816

High Output RAD Fan and Shroud Assembly

Name: High Output RAD Fan and Shroud Assembly
Brand: DERALE
SKU: 259-16816
Price: 363.75 USD
Availability: InStock

^$363⁷⁵

4 left in stock

Ships on Sep 08, 2026

Lowest Price Guarantee

Single Speed Fans

Universal Fit
Fan Size: 17"
CFM Speed High/Low: 2400/1800
Width: 16-3/4"
Height: 15-5/8"
Depth: 1-1/8"
Fan Diameter: 14"

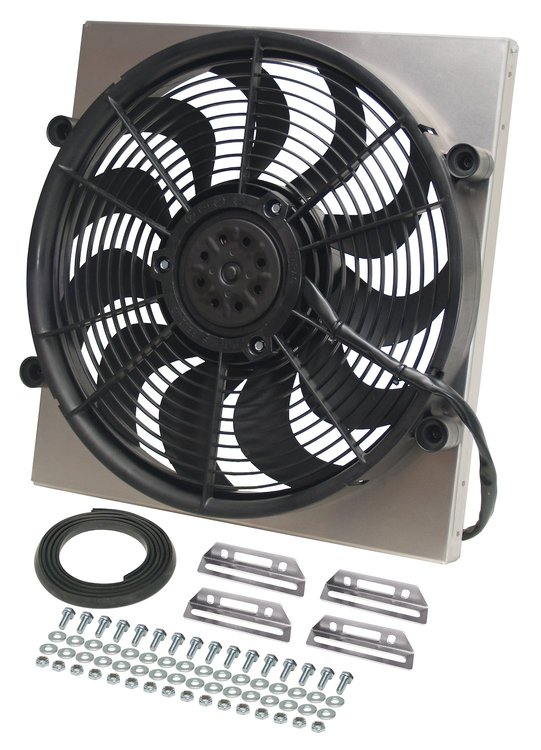

This High Output Single RAD Fan is part of the HO Aluminum Shrouded Fans Series designed with popular applications in mind. This assembly measures 16 3/4" wide by 17 5/8" top to bottom and only 3" thick overall to offer an adjustable yet precision fit. The raw aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it natural to create a truly custom look for an affordable price. The 17" high output two speed fan is one of the best in our line-up offering 2400 CFM when on high to create the most airflow possible in a compact size.Designed for primary cooling; Raw aluminum shroud construction can be polished, painted or anodized; High Output 265 watt motor; 2400 CFM; Ultra-quiet patented skewed blade design; Puller (engine side) applications only; Kit includes adjustable mounting brackets and complete mounting hardware

Part TypeElectric Fan

BrandDERALE

Package Height17.625 in (447.675 mm)

Package Width16.75 in (425.45 mm)

Package Length26.0

Weight11.8735 PG

Part CategoryAccessories

Blade MaterialPlastic

Fan QuantitySingle

Number Of Blades11 blades

Shroud MaterialAluminum

Air Conditioning Relay IncludedNo

QuantitySold individually

Mounting Hardware IncludedYes

Thickness3 in (76.2 mm)

Fan Diameter17 in (431.8 mm)

Blade ColorBlack

Amp Draw23.50 amps

Mounting Brackets IncludedYes

Part FitmentUniversal

Maximum Fan Cfm2,400 cfm

Shroud ColorNatural

Vendor Part Number16816

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations

⚠️ Warning
