Vehicle Info NeededDERALEPART NUMBER: 259-16817

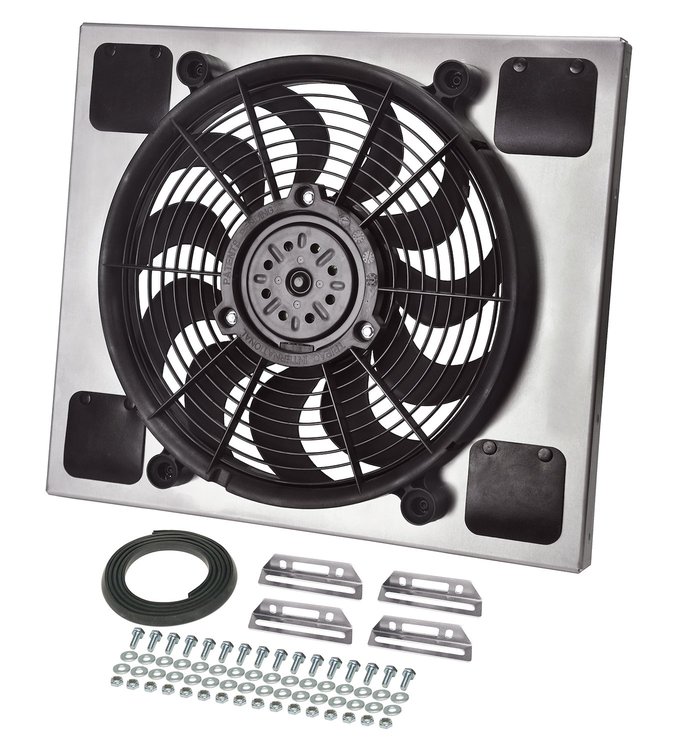

Single Speed Electric Puller Fan with Aluminum Shroud Universal Fit
$36375
Ships on 09/10/2026
Lowest Price GuaranteeSingle Speed Fans
- Single Speed Electric Puller Fan with Aluminum Shroud
- Universal Fit
- Width: 17"
- Height: 16-3/8"
- Fan Diameter 14"
Specifications: - CFM high/low: 2100/1500
- Amp draw high/low: 22/16.2
- Width:17"
- Height: 16-3/8"
- Shroud Depth: 1 1/8"
- Overall depth: 2 3/4"
- Mounting: Adjustable
Designed for maximum performance at high static pressure loads to improve cooling. These primary electric fans allow you to replace belt-driven fans that steal horsepower and undermine fuel economy.
Features:
- Multiple mounting options
- Ultra-quiet skewed-blade design
- Aluminum shrouds can be polished, painted, or anodized
- Mounting kit and illustrated instructions included
Part TypeElectric Fan
Product LineDerale High-Output Single RAD Electric Puller Fans with Shroud
BrandDERALE
Package Height16.375 in (415.925 mm)
Package Width17 in (431.8 mm)
Package Length26.5
Weight10.65 PG
Part CategoryAccessories
Blade MaterialPlastic
Fan QuantitySingle
Number Of Blades8 blades
Shroud MaterialAluminum
Air Conditioning Relay IncludedNo
QuantitySold individually
Mounting Hardware IncludedYes
Thickness3.438 in (87.3 mm)
Fan Diameter14 in (355.6 mm)
Blade ColorBlack
Amp Draw24.80 amps
Mounting Brackets IncludedYes
Part FitmentUniversal
Maximum Fan Cfm2,000 cfm
Shroud ColorNatural
Vendor Part Number16817
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
