Vehicle Info NeededDERALEPART NUMBER: 259-16828

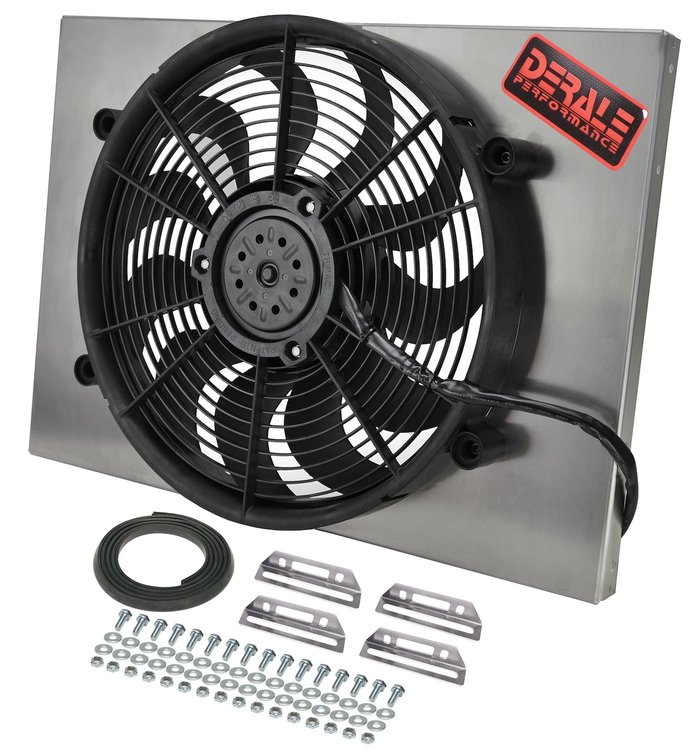

Dual Speed Electric Puller Fan with Aluminum Shroud Universal Fit
$37775
2 left in stock
Ships Today
Lowest Price GuaranteeDual Speed Fans
- Dual Speed Electric Puller Fan with Aluminum Shroud
- Universal Fit
- Width: 24"
- Height: 17"
- Fan Diameter: 17"
Adjustable mounting brackets, rubber seal, and mounting hardware includedImportant: This electric fan assembly has a high-output 2-speed motor. If you choose to operate the fan using both speeds, two switching devices or Derale Dual Fan Controller #259-16788 or #259-16789 must be used.
Specifications: - CFM high/low: 2400/1800
- Amp draw high/low: 23.5/17.4
- Width: 24"
- Height: 17"
- Depth: 1-1/8"
- Overall Depth: 3"
- Mounting: Adjustable
Designed for maximum performance at high static pressure loads to improve cooling. These primary electric fans allow you to replace belt-driven fans that steal horsepower and undermine fuel economy.
Features:
- Multiple mounting options
- Ultra-quiet skewed-blade design
- Aluminum shrouds can be polished, painted, or anodized
- Mounting kit and illustrated instructions included
Part TypeElectric Fan
Product LineDerale High-Output Single RAD Electric Puller Fans with Shroud
BrandDERALE
Package Height17 in (431.8 mm)
Package Width24 in (609.6 mm)
Package Length26.4
Weight12.57 PG
Part CategoryAccessories
Blade MaterialPlastic
Fan QuantitySingle
Number Of Blades11 blades
Shroud MaterialAluminum
Air Conditioning Relay IncludedNo
QuantitySold individually
Mounting Hardware IncludedYes
Thickness3 in (76.2 mm)
Fan Diameter13 in (330.2 mm)
Blade ColorBlack
Amp Draw24.80 amps
Mounting Brackets IncludedYes
Part FitmentUniversal
Maximum Fan Cfm2,000 cfm
Shroud ColorNatural
Vendor Part Number16828
Package Qty1
Package TypeEA
