Vehicle Info NeededDERALEPART NUMBER: 259-20161

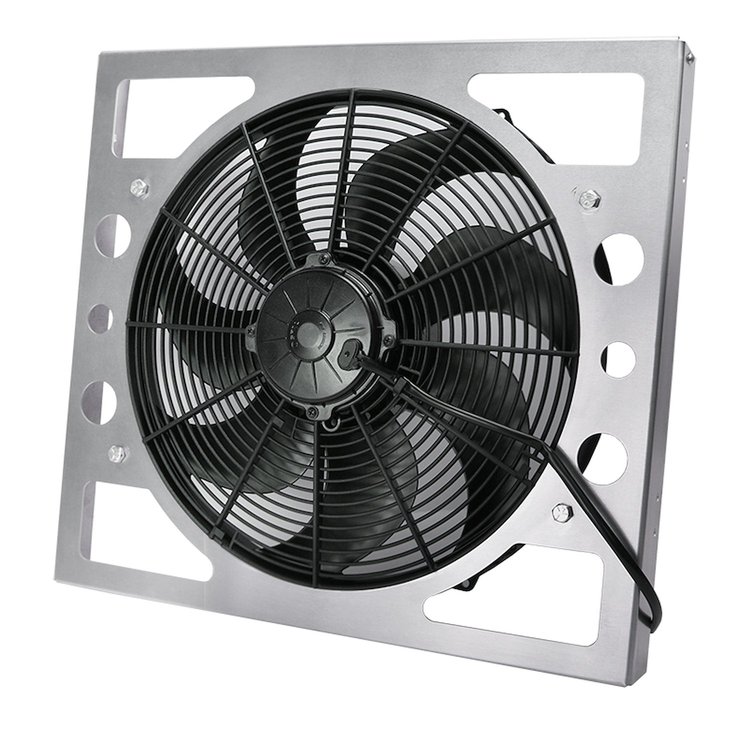

Jeep Wrangler Performance Electric Fan Kit
$50640
Ships on 09/08/2026
Lowest Price GuaranteeJeep Wrangler Performance Electric Fan Kit
- Jeep Wrangler Performance Electric Fan Kit
- 25.4 Amp Draw
- Width: 19-1/2"
- Height: 18"
- Overall Depth: 3-5/8"
Specifications: - Fan size: 16"
- CFM: 1918
- Amp draw: 25.4
- Width: 19-1/2"
- Height: 18"
- Depth: 1-5/8"
- Overall depth: 3-5/8"
- Mounting: 10" x 22-5/8"
- Airflow: Puller
This direct fit electric cooling fan assembly kit comes complete and ready to install right out of the box. Features include a thermostatically-controlled high performance 16" skewed blade electric fan, an aluminum laser-cut heavy duty shroud, along with all necessary brackets, fittings, relay harness, and mounting hardware to create the ultimate direct fit electric fan on the market. Fits all 4 and 6 cylinder Jeep Wrangler YJ's and TJ's.
Show More
Features:
- Replaces fan clutch, fan shroud & new shroud mounts to factory locations
- Complete kit includes everything you need for a do-it-yourself installation
- Radiator reservoir remount brackets included (used on some 4 & 6 cylinder applications)
- Aluminum shroud
- Thermostatic control included
- A/C override circuit included
- Easy to follow step-by-step instructions
Applications:

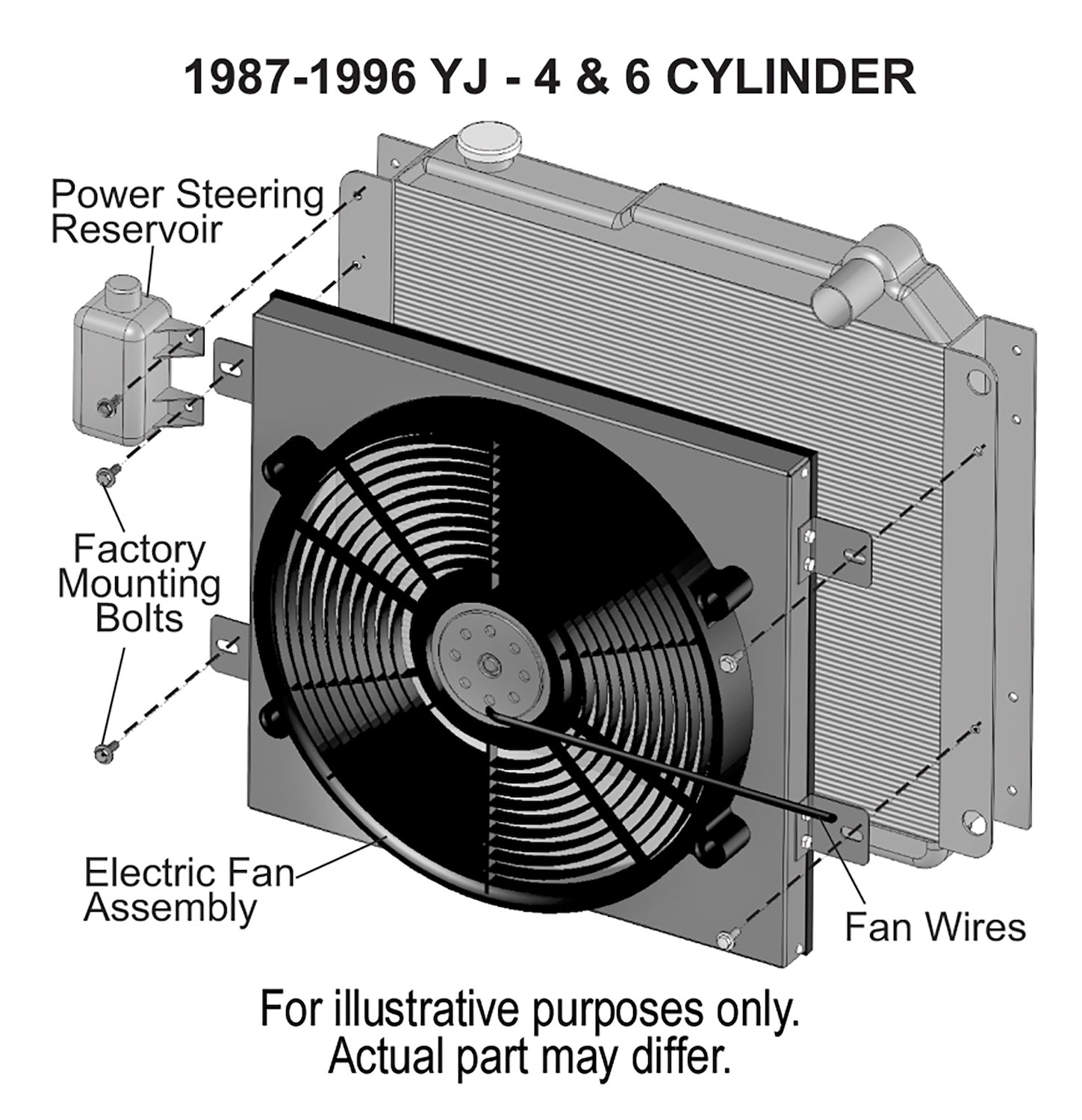

- 1987-1996 Jeep Wrangler YJ
- 1997-2006 Jeep Wrangler TJ
- All 4 & 6-cylinder engines
Part TypeElectric Fan
Product LineDerale Direct Fit Jeep Performance Electric Fan Kit
BrandDERALE
Package Height18 in (457.2 mm)
Package Width19.5 in (495.3 mm)
Package Length31.0
Weight16.94 PG
Part CategoryAccessories
Blade MaterialPlastic
Fan QuantitySingle
Number Of Blades7 blades
Shroud MaterialAluminum
Air Conditioning Relay IncludedYes
QuantitySold individually
Mounting Hardware IncludedYes
Thickness3.625 in (92.1 mm)
Fan Diameter16 in (406.4 mm)
Blade ColorBlack
Amp Draw25.40 amps
Mounting Brackets IncludedYes
Part FitmentSemi Universal
Maximum Fan Cfm1,918 cfm
Shroud ColorNatural
Vendor Part Number20161
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
