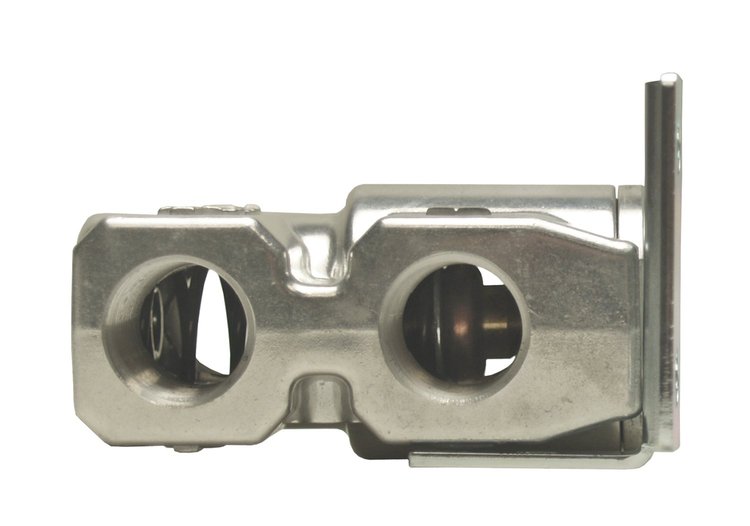

Fluid Control Thermostat With Mounting Bracket 1/2" NPT

Name: Fluid Control Thermostat With Mounting Bracket 1/2" NPT
Brand: DERALE
SKU: 259-25792
Price: 88.21 USD
Availability: InStock

^$88²¹

More than 10 available

Ships Today

Lowest Price Guarantee

Fluid Control Thermostats

1/2" NPT

This Billet Style Cast Aluminum Fluid Control Thermostat with 1/2" NPT ports allows the oil to bypass the cooler until it reaches 180°F at which point the internal thermostatic valve will close and force 100% of the oil through the cooler while maintaining a constant pressure system. This process allows the engine/transmission to achieve the ideal operating temperature quicker before passing the oil through the cooler. The unit can be rotated 180° to change flow direction and includes a universal mounting bracket for 4 different mounting positions.Fluid-Control-Thermostats.jpgBypasses cooler until fluid temperature reaches 180°F; Provides quicker warm-up temperatures; Perfect for cold weather climates; Can be rotated 180° to switch flow direction; Flows up to 20 gallons per minute; Rated up to 200 psi; Ultra bright finish; Billet style design; 1/2" NPT inlet/outlet ports

Part TypeRemote Oil Thermostat

BrandDERALE

Package Height2.3

Package Width4.4

Package Length7.4

Weight1.17 PG

Part CategoryAccessories

Fitting Size 1 (In.)1/2 NPT

Remote Oil Thermostat MaterialAluminum

Outlet QuantityTwo

Remote Oil Thermostat FinishPolished

QuantitySold individually

Fitting Attachment 2Female Threads

Inlet QuantityTwo

Fitting Attachment 1Female Threads

Part FitmentUniversal

Fitting Size 2 (In.)1/2 NPT

Vendor Part Number25792

Package Qty1

Package TypeEA
