Vehicle Info NeededDERALEPART NUMBER: 259-33602

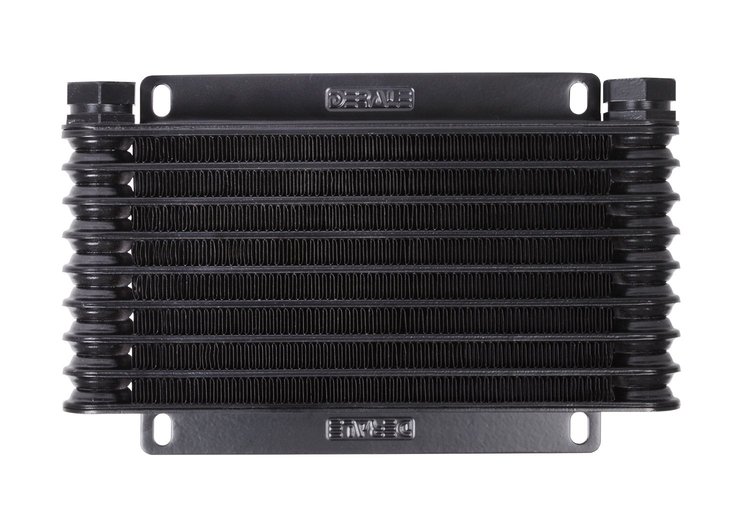

9 Row Series 9000 Plate & Fin Cooler 18000 GVW
$11112
5 left in stock
Ships Tomorrow
Lowest Price GuaranteePlate & Fin Transmission Cooler
9 Row Series 9000 Plate & Fin CoolerGVW: 18000 BTU: 14000 Inlet/Outlet Size: 1/2 in. NPT (Female) Width: 9 3/4 in. Height: 6 1/4 in. Depth: 1 1/4 in. Inlet Diameter: 8 1/2 in. Mounting Holes: 6 11/16 in. x 5 1/2 in. Aluminum
Derale 33602 9 Row Series 9000 Plate & Fin Cooler 18000 GVW Features:
- Prevents transmission failures due to excessive heat
- Extends transmission life
- Improves transmission performance
- Furnace-brazed aluminum construction
- 250 psi working pressure
- 300 psi burst strength
- 1-1/4" turbulators maximize cooling and minimize pressure drop
- 6 oz Fluid capacity
- Cooler only
Prevent Heat-Related Transmission Failures
Derale Series 9000 Plate and Fin Transmission Coolers and Kits maximize heat transfer while also minimizing pressure drop extending transmission life by preventing heat-related transmission failures.
Part TypeAuto Trans Oil Cooler
Product LineDerale Series 9000 Plate & Fin Transmission Coolers & Kits
BrandDERALE
Package Height2.2
Package Width11.7
Package Length13.6
Weight2.0 PG
Part CategoryAccessories
Core Thickness1.25 in (31.75 mm)
Number Of Cooling Rows9
Core Width9.75 in (247.65 mm)
Outlet AttachmentFemale Threads
QuantitySold individually
Cooler MaterialAluminum
Cooler ConstructionTube and fin
Part FitmentUniversal
Inlet AttachmentFemale Threads
Inlet Size (In.)1/2 NPT
Cooler FinishBlack painted
Vendor Part Number33602
Package Qty1
Package TypeEA
