Vehicle Info NeededDERALEPART NUMBER: 259-51006

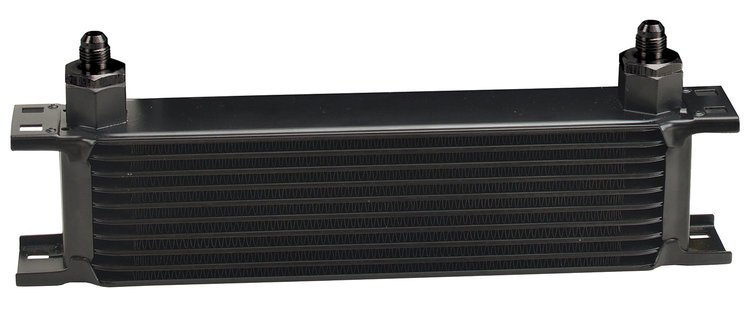

HP Stacked Plate Oil Cooler Kit 10 Row
$16855
Ships on 09/09/2026
Lowest Price Guarantee10 Row Cooler
- HP Stacked Plate Oil Cooler Kit
- 10 Row
- -6 AN Male Inlets
- 13''W x 4-7/16''H x 2''D
Specifications - Cooler style: Stack Plate
- Construction: Aluminum
- Inlet size: -10AN o-ring female x -6AN male
- Width: 13"
- Height: 4-7/16"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12-1/4" x 2-7/8"
- BTU Rating: 20,000
Derale's most efficient heat exchanger, the all aluminum Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powdercoat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes bright aluminum anodized finished male adapter fittings. Furnace brazed aluminum construction with 4 integrated mounting brackets.
Show More
Features:
- Designed for Engine or Transmission Cooling
- Most efficient heat exchangers available
- Furnace brazed aluminum construction with 4 integrated mounting brackets
- Available in these cooler sizes, 10, 16, 19, 25, 34 & 40 rows
- Available with aluminum AN fittings
- Cooler Kit with fittings offered in -6AN, -8AN & -10AN
- -10 AN / 7/8"-14 O-ring cooler inlets
Part TypeFluid Cooler
Product LineDerale High Pressure Stacked Plate Oil Cooler Cores and Kits
BrandDERALE
Package Height2.2
Package Width8.0
Package Length17.0
Weight2.31 PG
Part CategoryAccessories
Overall Thickness2 in (50.8 mm)
Overall Height4.438 in (112.7 mm)
Outlet Size-6 AN
Inlet Size-6 AN
QuantitySold individually
Cooler ConstructionPlate
Inlet AttachmentMale Threads
Core Height2.875 in (73.025 mm)
Cooler FinishBlack powdercoated
Core Thickness2 in (50.8 mm)
Number Of Cooling Rows10
Core Width10 in (254 mm)
Outlet AttachmentMale Threads
Overall Width13 in (330.2 mm)
Cooler MaterialAluminum
Part FitmentUniversal
Vendor Part Number51006
Package Qty1
Package TypeEA
