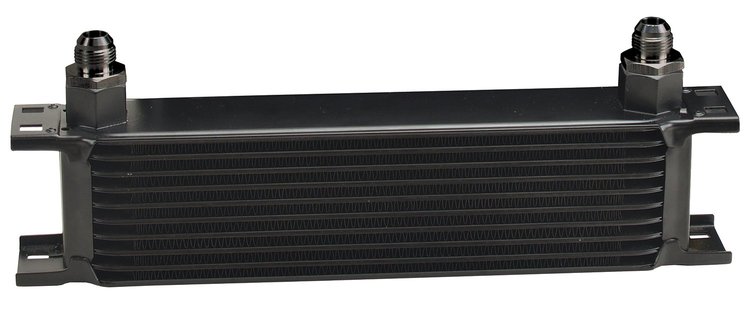

HP Stacked Plate Oil Cooler Kit 10 Row
InfoVehicle Info Needed
DERALEPART NUMBER: 259-51008

HP Stacked Plate Oil Cooler Kit 10 Row

$16855
ShippingShips on 11/23/2026
Lowest PriceLowest Price Guarantee

Items You Need

Dual Stacked Plate Cooler Mounting Brackets

DERALE

Dual Stacked Plate Cooler Mounting Brackets

Part Number : 259-50022
$15335
High Pressure Stacked Plate Cooler Mounting Bracket Kit New 4-way Bracket System

DERALE

High Pressure Stacked Plate Cooler Mounting Bracket Kit New 4-way Bracket System

Part Number : 259-50020
$4707
Single Stacked Plate Cooler Mounting Brackets

DERALE

Single Stacked Plate Cooler Mounting Brackets

Part Number : 259-50023
$12038
Adjustable Stacked Plate Cooler Mounting Brackets

DERALE

Adjustable Stacked Plate Cooler Mounting Brackets

Part Number : 259-50021
$9417

10 Row Cooler
    HP Stacked Plate Oil Cooler Kit
  • 10 Row
  • -8 AN Male Inlets
  • 13''W x 4-9/16''H x 2''D

    Specifications:
  • Cooler style: Stack Plate
  • Construction: Aluminum
  • Inlet size: -10AN o-ring female x -8AN male
  • Width: 13"
  • Height: 4-9/16"
  • Depth: 2"
  • Inlet dim: 10"
  • Mounting: 12-1/4" x 2-7/8"
  • BTU Rating: 20,000

Derale's most efficient heat exchanger, the all aluminum Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powdercoat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes bright aluminum anodized finished male adapter fittings. Furnace brazed aluminum construction with 4 integrated mounting brackets.

Show More

Features:

  • Designed for Engine or Transmission Cooling
  • Most efficient heat exchangers available
  • Furnace brazed aluminum construction with 4 integrated mounting brackets
  • Available in these cooler sizes, 10, 16, 19, 25, 34 & 40 rows
  • Available with aluminum AN fittings
  • Cooler Kit with fittings offered in -6AN, -8AN & -10AN
  • -10 AN / 7/8"-14 O-ring cooler inlets
Part TypeFluid Cooler
Product LineDerale High Pressure Stacked Plate Oil Cooler Cores and Kits
BrandDERALE
Package Height2.2
Package Width8.0
Package Length17.2
Weight2.35 PG
Part CategoryAccessories
Overall Thickness2 in (50.8 mm)
Overall Height4.563 in (115.9 mm)
Outlet Size-8 AN
Inlet Size-8 AN
QuantitySold individually
Cooler ConstructionPlate
Inlet AttachmentMale Threads
Core Height2.875 in (73.025 mm)
Cooler FinishBlack powdercoated
Core Thickness2 in (50.8 mm)
Number Of Cooling Rows10
Core Width10 in (254 mm)
Outlet AttachmentMale Threads
Overall Width13 in (330.2 mm)
Cooler MaterialAluminum
Part FitmentUniversal
Vendor Part Number51008
Package Qty1
Package TypeEA
