Vehicle Info NeededDERALEPART NUMBER: 259-51608

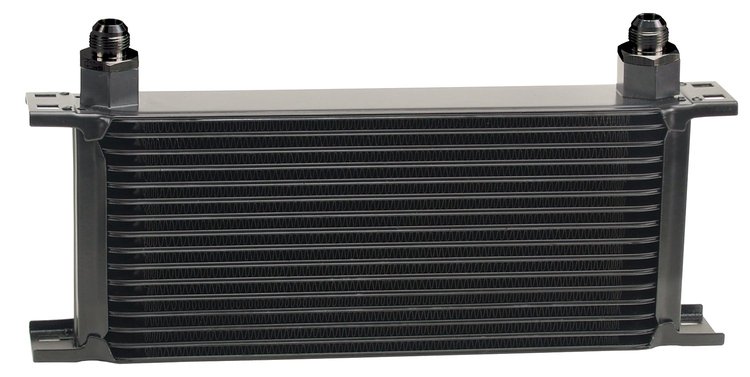

HP Stacked Plate Oil Cooler Kit 16 Row
$22174
2 left in stock
Ships Tomorrow
Lowest Price Guarantee16 Row Cooler
- HP Stacked Plate Oil Cooler Kit
- 16 Row
- -8 AN Male Inlets
- 13''W x 6-9/16''H x 2''D
Specifications: - Cooler style: Stack Plate
- Construction: Aluminum
- Inlet size: -10AN o-ring female x -8AN male
- Width: 13"
- Height: 6-9/16"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12-1/4" x 4-7/8"
- BTU Rating: 32,000
Derale's most efficient heat exchanger, the all aluminum Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powdercoat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes bright aluminum anodized finished male adapter fittings. Furnace brazed aluminum construction with 4 integrated mounting brackets.
Show More
Features:
- Designed for Engine or Transmission Cooling
- Most efficient heat exchangers available
- Furnace brazed aluminum construction with 4 integrated mounting brackets
- Available in these cooler sizes, 10, 16, 19, 25, 34 & 40 rows
- Available with aluminum AN fittings
- Cooler Kit with fittings offered in -6AN, -8AN & -10AN
- -10 AN / 7/8"-14 O-ring cooler inlets
Part TypeFluid Cooler
Product LineDerale High Pressure Stacked Plate Oil Cooler Cores and Kits
BrandDERALE
Package Height2.2
Package Width8.0
Package Length18.4
Weight3.1 PG
Part CategoryAccessories
Overall Thickness2 in (50.8 mm)
Overall Height6.563 in (166.7 mm)
Outlet Size-8 AN
Inlet Size-8 AN
QuantitySold individually
Cooler ConstructionPlate
Inlet AttachmentMale Threads
Core Height4.875 in (123.825 mm)
Cooler FinishBlack powdercoated
Core Thickness2 in (50.8 mm)
Number Of Cooling Rows16
Core Width10 in (254 mm)
Outlet AttachmentMale Threads
Overall Width13 in (330.2 mm)
Cooler MaterialAluminum
Part FitmentUniversal
Vendor Part Number51608
Package Qty1
Package TypeEA
