Vehicle Info NeededDERALEPART NUMBER: 259-52508

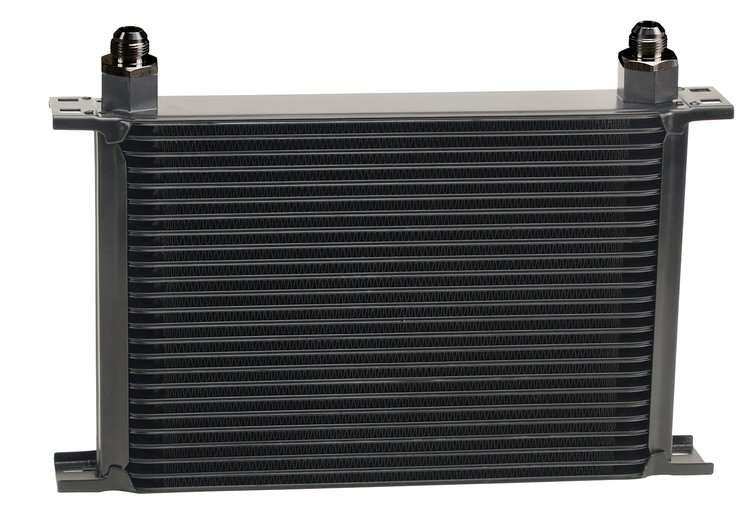

Stacked Plate Cooler Kit 25 Row
$30200
Ships Tomorrow
Lowest Price Guarantee25 Row Cooler
- Stacked Plate Cooler Kit
- 25 Row
- -8 AN Male Inlets
- 13''W x 9-5/16''H x 2''D
Specifications: - Cooler style: Stack Plate
- Construction: Aluminum
- Inlet size: -10AN o-ring female x -8AN male
- Width: 13"
- Height: 9-5/16"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12-1/4" x 7-5/8"
- BTU Rating: 45,000
Derale's most efficient heat exchanger, the all aluminum Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powdercoat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes bright aluminum anodized finished male adapter fittings. Furnace brazed aluminum construction with 4 integrated mounting brackets.
Show More
Features:
- Designed for Engine or Transmission Cooling
- Most efficient heat exchangers available
- Furnace brazed aluminum construction with 4 integrated mounting brackets
- Available in these cooler sizes, 10, 16, 19, 25, 34 & 40 rows
- Available with aluminum AN fittings
- Cooler Kit with fittings offered in -6AN, -8AN & -10AN
- -10 AN / 7/8"-14 O-ring cooler inlets
Part TypeOil Cooler
Product LineDerale High Pressure Stacked Plate Oil Cooler Cores and Kits
BrandDERALE
Package Height2.3
Package Width12.6
Package Length17.3
Weight4.54 PG
Part CategoryAccessories
Overall Thickness2 in (50.8 mm)
Overall Height9.313 in (236.6 mm)
Outlet Size-8 AN
Inlet Size-8 AN
QuantitySold individually
Cooler ConstructionPlate
Inlet AttachmentMale Threads
Core Height7.625 in (193.675 mm)
Cooler FinishBlack powdercoated
Core Thickness2 in (50.8 mm)
Number Of Cooling Rows25
Core Width10 in (254 mm)
Outlet AttachmentMale Threads
Overall Width13 in (330.2 mm)
Cooler MaterialAluminum
Part FitmentUniversal
Vendor Part Number52508
Package Qty1
Package TypeEA
