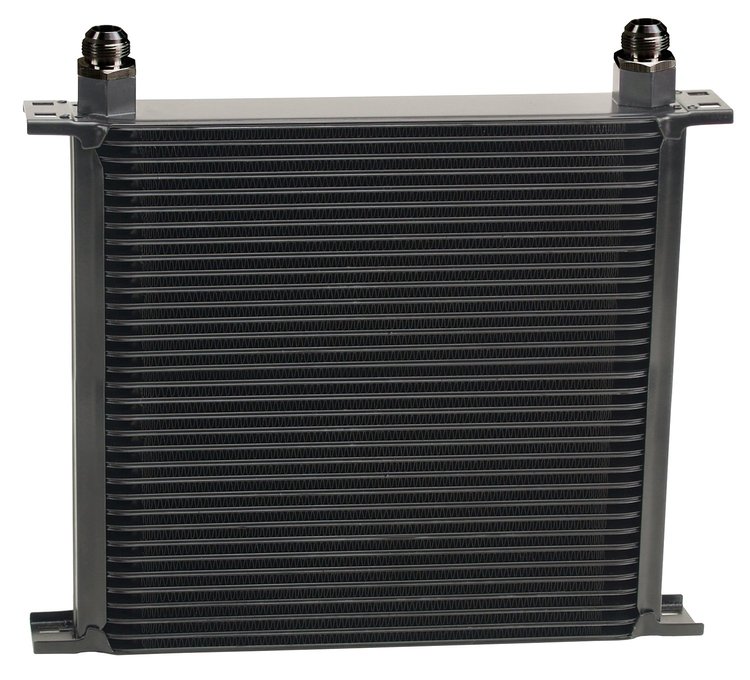

Stack Plate Oil Cooler 34 Row, -10AN

Name: Stack Plate Oil Cooler 34 Row, -10AN
Brand: DERALE
SKU: 259-53410
Price: 410.14 USD
Availability: InStock

^$410¹⁴

Ships on 09/04/2026

Lowest Price Guarantee

Stack Plate Oil Cooler 34 Row, -10AN

Our most efficient heat exchanger, the all aluminum 34 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes aluminum -10AN male adapter fittings.Designed for engine and transmission cooling; Most efficient heat exchangers available; Furnace brazed aluminum construction with 4 integrated mounting brackets; 34 row cooler design; Male -10AN aluminum O-ring inlet fittings; 59,000 BTU's Per Hour

Part TypeFluid Cooler

BrandDERALE

Package Height2.13

Package Width13.0

Package Length18.63

Weight5.13 PG

Part CategoryAccessories

Overall Thickness2 in (50.8 mm)

Overall Height12.063 in (306.4 mm)

Outlet Size-10 AN

Inlet Size-10 AN

QuantitySold individually

Cooler ConstructionPlate

Inlet AttachmentMale Threads

Core Height10.063 in (255.6 mm)

Cooler FinishBlack powdercoated

Core Thickness2 in (50.8 mm)

Number Of Cooling Rows34

Core Width10 in (254 mm)

Outlet AttachmentMale Threads

Overall Width13 in (330.2 mm)

Cooler MaterialAluminum

Part FitmentUniversal

Vendor Part Number53410

Package Qty1

Package TypeEA
