Vehicle Info NeededDERALEPART NUMBER: 259-53478

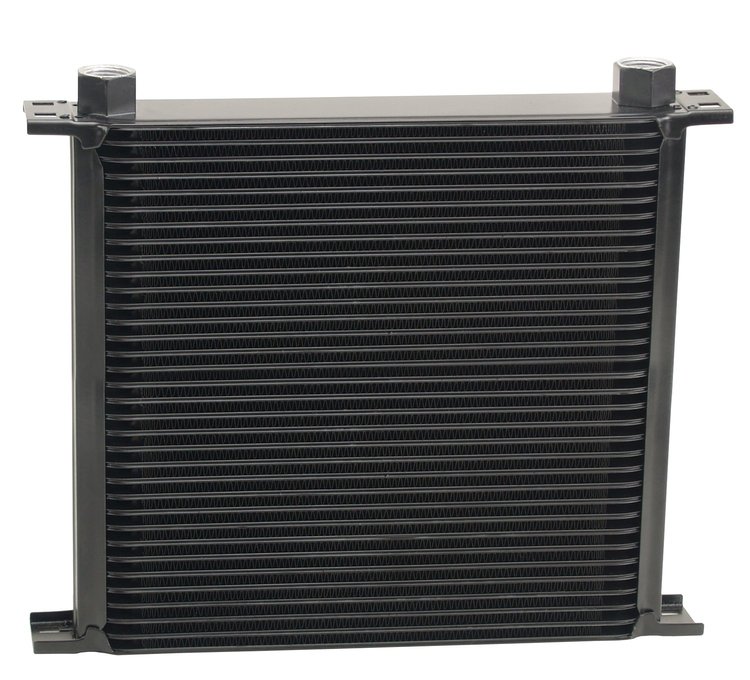

HP Stacked Plate Oil Cooler Core 34 Row
$36751
Ships on 09/08/2026
Lowest Price Guarantee34 Row Cooler
- HP Stacked Plate Oil Cooler Core
- 34 Row
- -10 AN O-Ring Female Inlets
- 13''W x 10-7/8''H x 2''D
Specifications: - Cooler style: Stack Plate
- Construction: Aluminum
- Inlet size: -10AN o-ring female x -10AN male
- Width: 13"
- Height: 10-7/8"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12-1/4" x 10-1/16"
- BTU Rating: 58,000
Part TypeFluid Cooler
BrandDERALE
Package Height2.5
Package Width13.0
Package Length19.0
Weight5.495 PG
Part CategoryAccessories
Overall Thickness2 in (50.8 mm)
Overall Height12.063 in (306.4 mm)
Outlet Size-10 AN O-ring
Inlet Size-10 AN O-ring
QuantitySold individually
Cooler ConstructionPlate
Inlet AttachmentFemale Threads
Core Height10.063 in (255.6 mm)
Cooler FinishBlack powdercoated
Core Thickness2 in (50.8 mm)
Number Of Cooling Rows34
Core Width10 in (254 mm)
Outlet AttachmentMale Threads
Overall Width13 in (330.2 mm)
Cooler MaterialAluminum
Part FitmentUniversal
Vendor Part Number53478
Package Qty1
Package TypeEA
