Vehicle Info NeededDERALEPART NUMBER: 259-54012

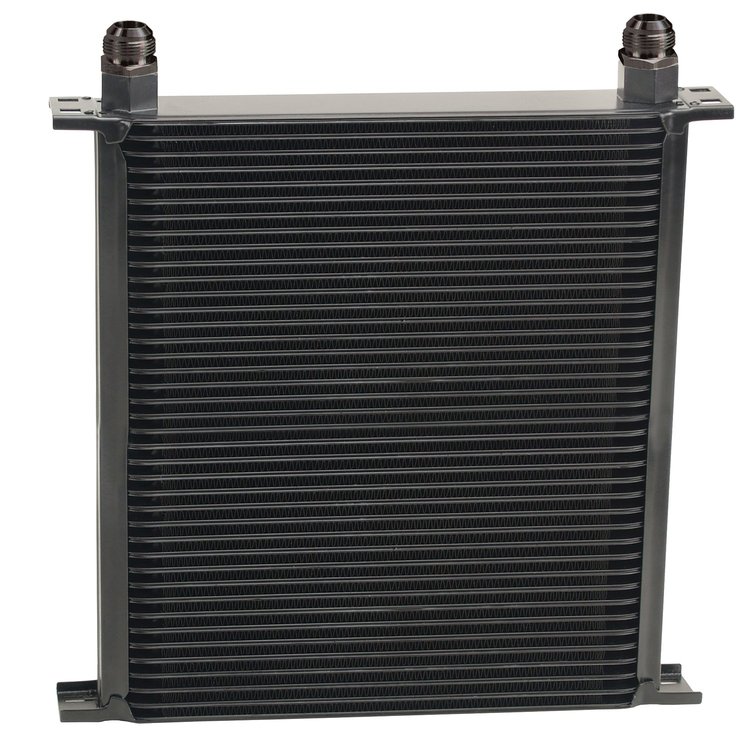

HP Stacked Plate Oil Cooler Kit 40 Row
$46814
Ships on 09/09/2026
Lowest Price Guarantee40 Row Cooler
HP Stacked Plate Oil Cooler Kit40 Row -12 AN Male Inlets 13 W x 13.875 H x 2 in. D
Specifications:
- Cooler style: Stack Plate
- Construction: Aluminum
- Inlet size: -12 male
- Width: 13 in.
- Height: 13.875 in.
- Depth: 2 in.
- Inlet dim: 10 in.
- Mounting: 12.250 x 12 in.
- BTU Rating: 66,000
Derale's most efficient heat exchanger, the all aluminum Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powdercoat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes bright aluminum anodized finished male adapter fittings. Furnace brazed aluminum construction with 4 integrated mounting brackets.
Show More
Features:
- Designed for Engine or Transmission Cooling
- Most efficient heat exchangers available
- Furnace brazed aluminum construction with 4 integrated mounting brackets
- Available in these cooler sizes, 10, 16, 19, 25, 34 & 40 rows
- Available with aluminum AN fittings
- Cooler Kit with fittings offered in -6AN, -8AN & -10AN
- -10 AN / 7/8"-14 O-ring cooler inlets
Part TypeFluid Cooler
Product LineDerale High Pressure Stacked Plate Oil Cooler Cores and Kits
BrandDERALE
Package Height2.2
Package Width13.0
Package Length18.3
Weight6.4 PG
Part CategoryAccessories
Overall Thickness2 in (50.8 mm)
Overall Height13.875 in (352.4 mm)
Outlet Size-12 AN
Inlet Size-12 AN
QuantitySold individually
Cooler ConstructionPlate
Inlet AttachmentMale Threads
Core Height12 in (304.8 mm)
Cooler FinishBlack powdercoated
Core Thickness2 in (50.8 mm)
Number Of Cooling Rows40
Core Width10 in (254 mm)
Outlet AttachmentMale Threads
Overall Width13 in (330.2 mm)
Cooler MaterialAluminum
Part FitmentUniversal
Vendor Part Number54012
Package Qty1
Package TypeEA
