Vehicle Info NeededDERALEPART NUMBER: 259-54078

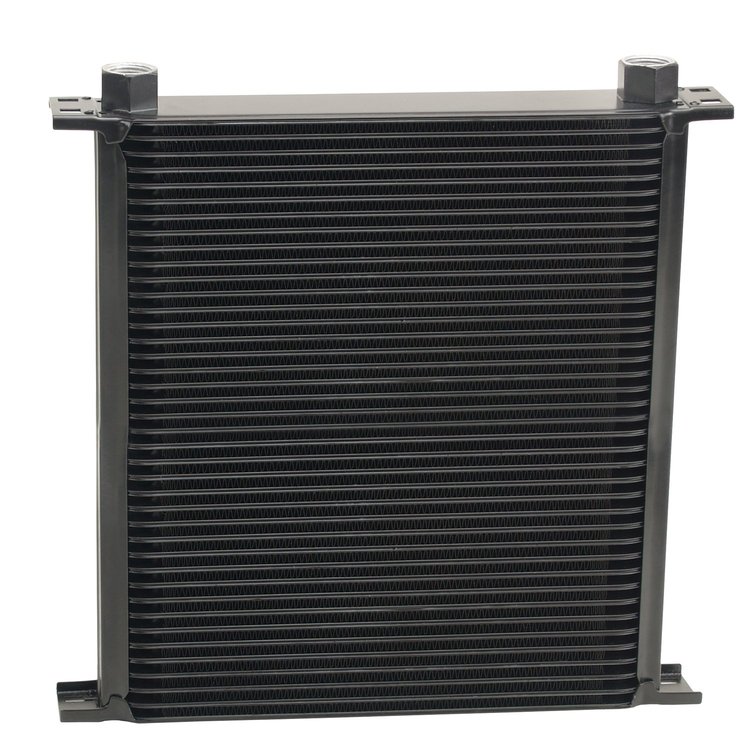

HP Stacked Plate Oil Cooler Core 40 Row
$42553
2 left in stock
Ships on Sep 08, 2026
Lowest Price Guarantee40 Row Cooler
- HP Stacked Plate Oil Cooler Core
- 40 Row
- -10 AN O-Ring Female Inlets
- 13''W x 12-3/4''H x 2''D
Specifications: - Cooler style: Stack Plate
- Construction: Aluminum
- Inlet size: -10AN o-ring female x -10AN male
- Width: 13"
- Height: 12-3/4"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12-1/4" x 12"
- BTU Rating: 66,000
Part TypeFluid Cooler
BrandDERALE
Package Height2.2
Package Width13.1
Package Length18.1
Weight6.18 PG
Part CategoryAccessories
Overall Thickness2 in (50.8 mm)
Overall Height12.75 in (323.9 mm)
Outlet Size-10 AN O-ring
Inlet Size-10 AN O-ring
QuantitySold individually
Cooler ConstructionPlate
Inlet AttachmentFemale Threads
Core Height12 in (304.8 mm)
Cooler FinishBlack painted
Core Thickness2 in (50.8 mm)
Number Of Cooling Rows40
Core Width10 in (254 mm)
Outlet AttachmentFemale Threads
Overall Width13 in (330.2 mm)
Cooler MaterialAluminum
Part FitmentUniversal
Vendor Part Number54078
Package Qty1
Package TypeEA
