Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
GM
F-Body 67'-69'
X-Body 68'-74'
F-Body 67'-69'
X-Body 68'-74'

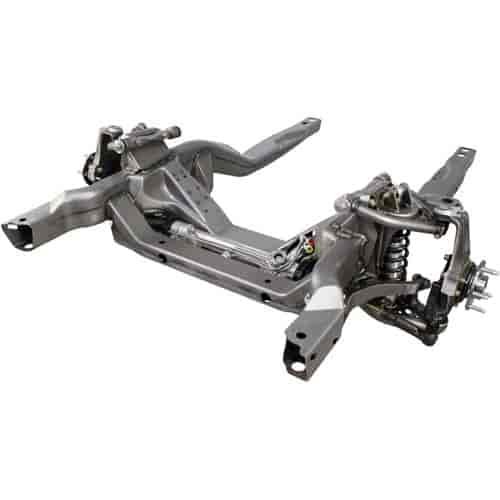

- Hydroformed Subframe Kit
- 1967-1969 GM F-Body
- 1968-1974 GM X-Body
- Cars with Big Block Chevy Motor
- Double-Adjustable Shocks Package
- Raw Finish
- Unassembled
Specifications:
- Nominal Camber: -0.5 deg.
- Nominal Caster: +4.5 deg. (Adjustable to +5.5 deg.)
- Total Suspension Travel: 6.0"
- Total Bumpsteer, 30" Toe-Span: 0.084" Over 6" of Travel
- Turning Angle: 30.0 deg. ( 18" x 10" or 17" x 9" Wheels)
- Ackerman Angle: 2.5 deg. ( 18" x 10" or 17" x 9" Wheels)
- Turning Angle: 33.8 deg. ( 18" x 9" Wheels)
- Ackerman Angle: 3.5 deg. ( 18" x 9" Wheels
Additional Notes:
At least 17" wheels that require a minimum inside wheel diameter of 16.250" must be used.
Up to a 10" wide wheel can be used without modification to the inner wheel wells.
Subframe must ship freight.
Part TypeSubframe
BrandDETROIT SPEED
Package Width350.0
Weight350.0 PG
Part CategoryPerformance Parts
Vendor Part Number032002-D
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
