This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
F-Body 67'-69'
X-Body 68'-74'

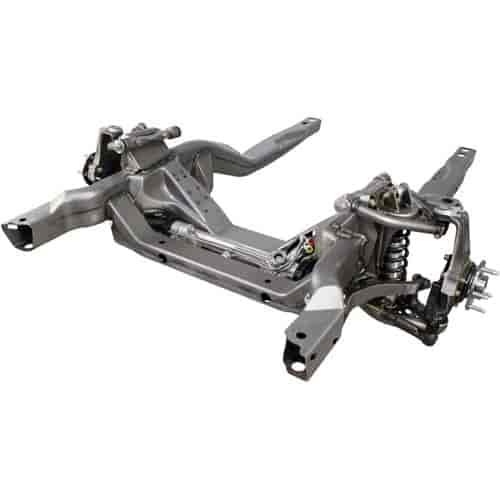

- Hydroformed Subframe Kit
- 1967-1969 GM F-Body
- 1968-1974 GM X-Body
- Cars with Big Block Chevy Motor
- Basic Shocks Package
- Raw Finish
- Unassembled
Specifications:
- Nominal Camber: -0.5 deg.
- Nominal Caster: +4.5 deg. (Adjustable to +5.5 deg.)
- Total Suspension Travel: 6.0"
- Total Bumpsteer, 30" Toe-Span: 0.084" Over 6" of Travel
- Turning Angle: 30.0 deg. ( 18" x 10" or 17" x 9" Wheels)
- Ackerman Angle: 2.5 deg. ( 18" x 10" or 17" x 9" Wheels)
- Turning Angle: 33.8 deg. ( 18" x 9" Wheels)
- Ackerman Angle: 3.5 deg. ( 18" x 9" Wheels
Additional Notes:
At least 17" wheels that require a minimum inside wheel diameter of 16.250" must be used.
Up to a 10" wide wheel can be used without modification to the inner wheel wells.
Subframe must ship freight.
Detroit Speed Hydroformed Subframe Kits are a bolt-in replacement for the original stock subframe. It improves the handling and ride quality by utilizing Detroit Speed’s unique suspension geometry. It is the ONLY subframe in the aftermarket industry with hydroformed frame rails. The hydroformed frame rails feature strength and stiffness, precise quality and repeatability. Hydroforming preserves the steel’s strength and stiffness because it is performed at low temperatures, unlike traditional high temperature processes which decrease material strength.
Show More
Subframe Components Include:
- Hydroformed Frame rails
- Stamped Crossmembers
- Tubular Upper and Lower Control Arms
- DSE/JRi Coilover Shocks with 'Detroit Tuned' valving (Upgraded Shocks Available)
- Torrington Bearings
- Coilover Springs
- 'Detroit Tuned' Power Rack and Pinion Steering
- Splined Anti-Roll Bar
- Forged DSE Spindle
- Spanner Tool for easy shock adjustments
- Composite Anti-Roll bar bushings
The DSE subframe has been designed, engineered, and developed for the road and track. This subframe blends the benefits of current OEM technology and aftermarket performance into one product! Standard subframes are sold in bare metal, uncoated and unassembled. If the powder coat option is purchased, assembly is included. All Subframes must be freight shipped.
