Vehicle Info NeededDETROIT SPEEDPART NUMBER: 320-032004-S

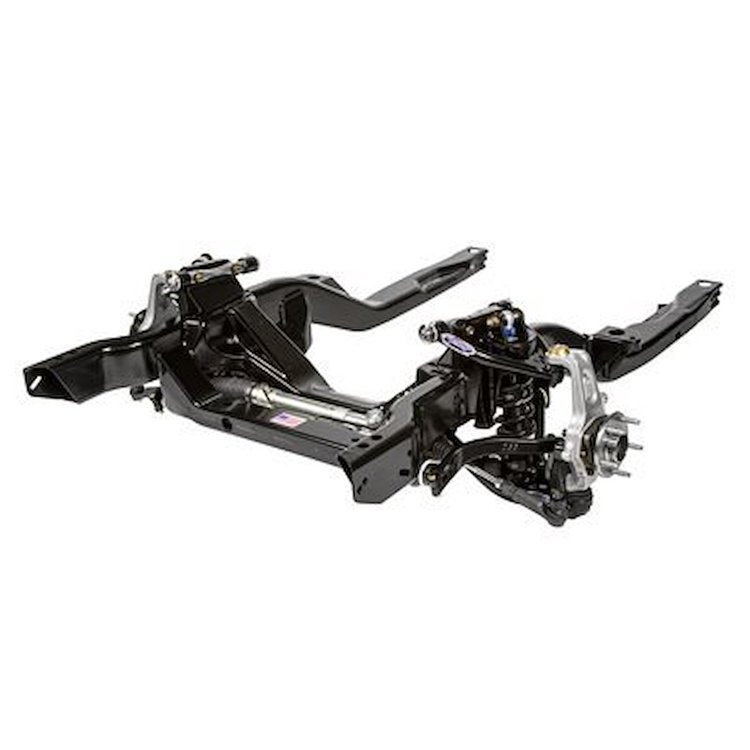

Hydroformed Subframe Kit
$10,97895
Truck Freight
Ships on 10/06/2026
Lowest Price GuaranteeGM
F-Body 67'-69'
X-Body 68'-74'
F-Body 67'-69'
X-Body 68'-74'
- Hydroformed Subframe Kit
- 1967-1969 GM F-Body
- 1968-1974 GM X-Body
- Cars with Small Block Chevy or LS Motor
- Single-Adjustable Shocks Package
- Black Powder Coat Finish
- Assembled
Specifications: - Nominal Camber: -0.5 deg.
- Nominal Caster: +4.5 deg. (Adjustable to +5.5 deg.)
- Total Suspension Travel: 6.0"
- Total Bumpsteer, 30" Toe-Span: 0.084" Over 6" of Travel
- Turning Angle: 30.0 deg. ( 18" x 10" or 17" x 9" Wheels)
- Ackerman Angle: 2.5 deg. ( 18" x 10" or 17" x 9" Wheels)
- Turning Angle: 33.8 deg. ( 18" x 9" Wheels)
- Ackerman Angle: 3.5 deg. ( 18" x 9" Wheels
Additional Notes:
At least 17" wheels that require a minimum inside wheel diameter of 16.250" must be used.
Up to a 10" wide wheel can be used without modification to the inner wheel wells.
Subframe and anti-roll bar arms are satin black. Upper and lower control arms are gloss black.
Subframe must ship freight.
Part TypeSubframe
BrandDETROIT SPEED
Package Height2.8
Package Width6.7
Package Length8.2
Weight460.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number032004-SDS
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
