Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
GM
F-Body 70'-81'
F-Body 70'-81'

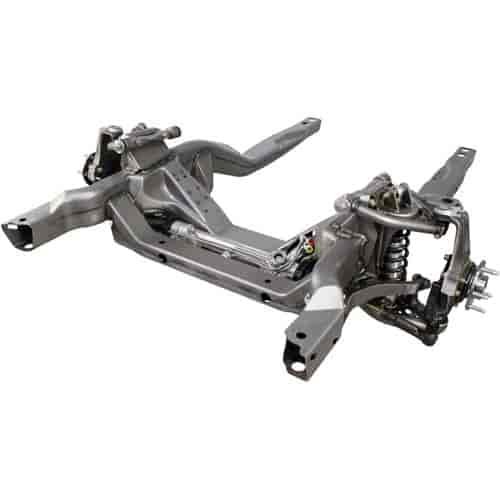

Hydroformed Subframe Kit1970-1981 GM F-Body Cars with Small Block Chevy or LS Motor Basic Shocks Package Raw Finish Unassembled
Specifications:
- Nominal Camber: -0.5 deg.
- Nominal Caster: +4.5 deg. (Adjustable to +5.5 deg.)
- Total Suspension Travel: 6.0"
- Total Bumpsteer, 30" Toe-Span: 0.084" Over 6" of Travel
- Turning Angle: 30.0 deg. ( 18" x 10" or 17" x 9" Wheels)
- Ackerman Angle: 2.5 deg. ( 18" x 10" or 17" x 9" Wheels)
- Turning Angle: 33.8 deg. ( 18" x 9" Wheels)
- Ackerman Angle: 3.5 deg. ( 18" x 9" Wheels
Additional Notes: - At least 17" wheels that require a minimum inside wheel diameter of 16.250" must be used.
- Up to a 10" wide wheel can be used without modification to the inner wheel wells.
- Subframe must ship freight.
Part TypeSubframe
BrandDETROIT SPEED
Package Width350.0
Weight350.0 PG
Part CategoryPerformance Parts
Vendor Part Number032011
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
