GM
F-Body 70'-81'
F-Body 70'-81'

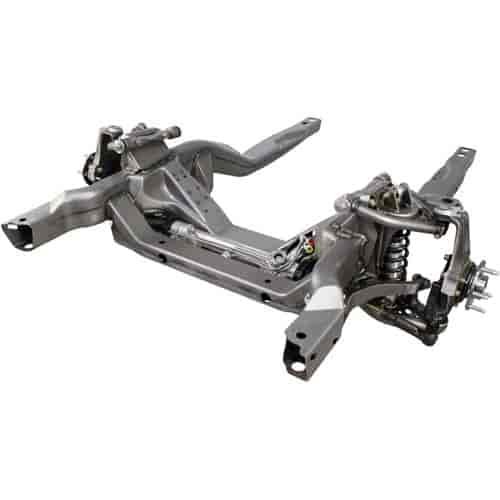

- Hydroformed Subframe Kit
- 1970-1981 GM F-Body
- Cars with Big Block Chevy Motor
- Single-Adjustable Shocks Package
- Raw Finish
- Unassembled
Specifications:
- Nominal Camber: -0.5 deg.
- Nominal Caster: +4.5 deg. (Adjustable to +5.5 deg.)
- Total Suspension Travel: 6.0"
- Total Bumpsteer, 30" Toe-Span: 0.084" Over 6" of Travel
- Turning Angle: 30.0 deg. ( 18" x 10" or 17" x 9" Wheels)
- Ackerman Angle: 2.5 deg. ( 18" x 10" or 17" x 9" Wheels)
- Turning Angle: 33.8 deg. ( 18" x 9" Wheels)
- Ackerman Angle: 3.5 deg. ( 18" x 9" Wheels
Additional Notes: - At least 17" wheels that require a minimum inside wheel diameter of 16.250" must be used.
- Up to a 10" wide wheel can be used without modification to the inner wheel wells.
- Subframe must ship freight.
Part TypeSubframe
BrandDETROIT SPEED
Package Width350.0
Weight350.0 PG
Part CategoryPerformance Parts
Vendor Part Number032012-S
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
