Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
GM
F-Body 67'-69'
X-Body 68'-74'
F-Body 67'-69'
X-Body 68'-74'

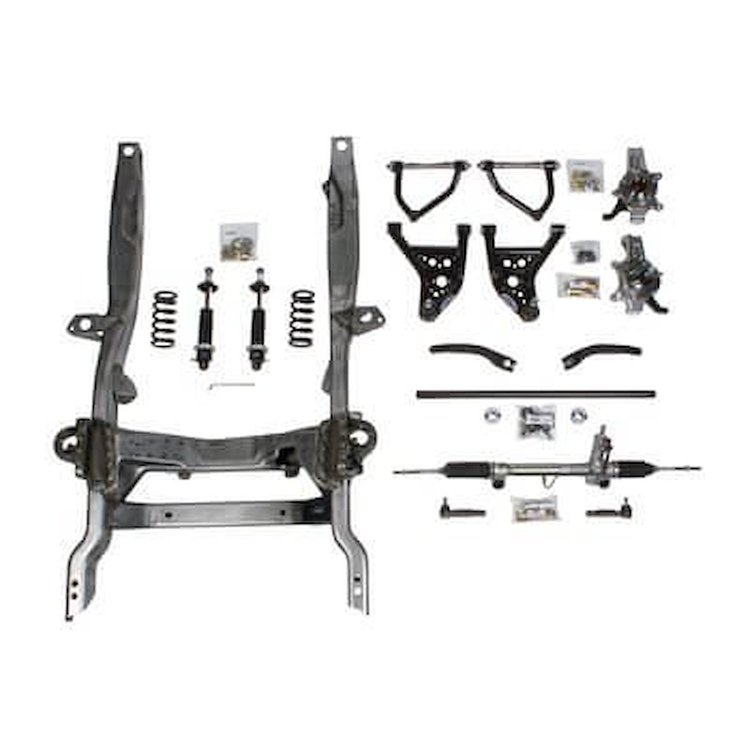

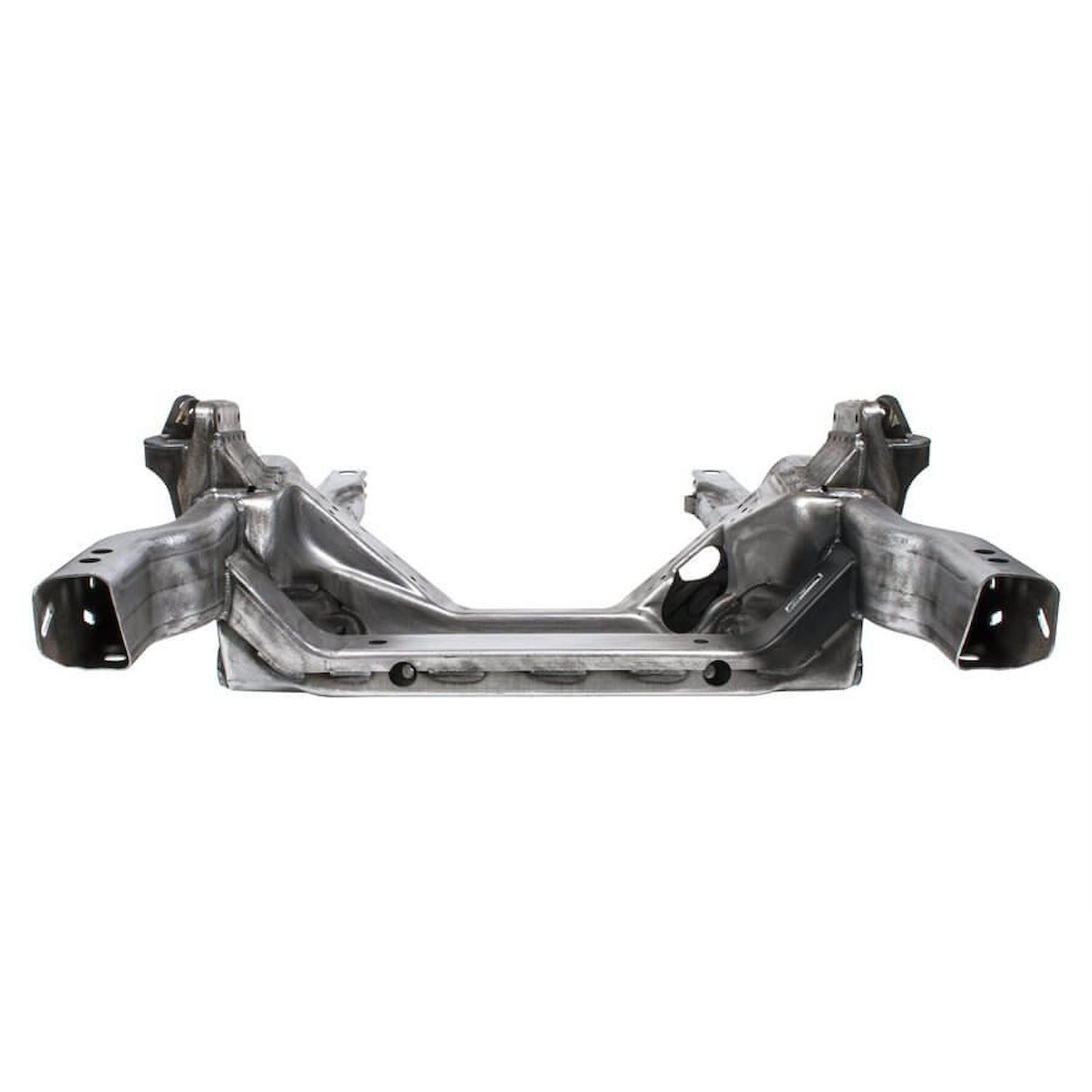

- Hydroformed Subframe Kit
- 1967-1969 GM F-Body
- 1968-1974 GM X-Body
- Cars with Small Block Chevy or LS Motor
- Double-Adjustable Shocks Package
- Raw Frame, Black Powder Coat Components
- Unassembled
Specifications:
- Nominal Camber: -0.5 deg.
- Nominal Caster: +4.5 deg. (Adjustable to +5.5 deg.)
- Total Suspension Travel: 6.0"
- Total Bumpsteer, 30" Toe-Span: 0.084" Over 6" of Travel
- Turning Angle: 30.0 deg. ( 18" x 10" or 17" x 9" Wheels)
- Ackerman Angle: 2.5 deg. ( 18" x 10" or 17" x 9" Wheels)
- Turning Angle: 33.8 deg. ( 18" x 9" Wheels)
- Ackerman Angle: 3.5 deg. ( 18" x 9" Wheels
Additional Notes:
At least 17" wheels that require a minimum inside wheel diameter of 16.250" must be used.
Up to a 10" wide wheel can be used without modification to the inner wheel wells.
Subframe is raw finish. Anti-roll bar arms are satin black.Upper and lower control arms are gloss black.
Subframe must ship freight.
Part TypeSubframe
BrandDETROIT SPEED
Package Width350.0
Weight350.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number032017-DDS
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
