Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
GM
F-Body 67'-69'
X-Body 68'-74'
F-Body 67'-69'
X-Body 68'-74'

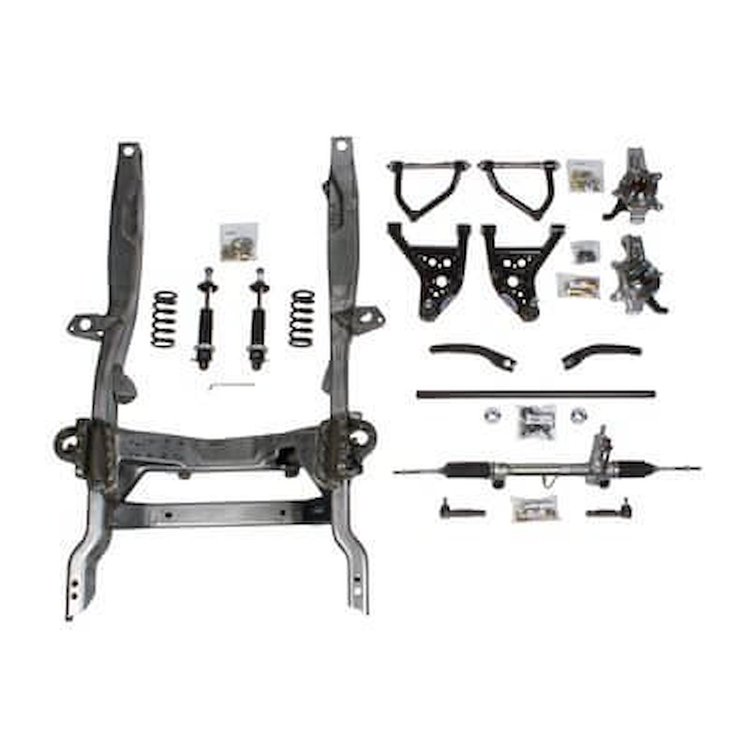

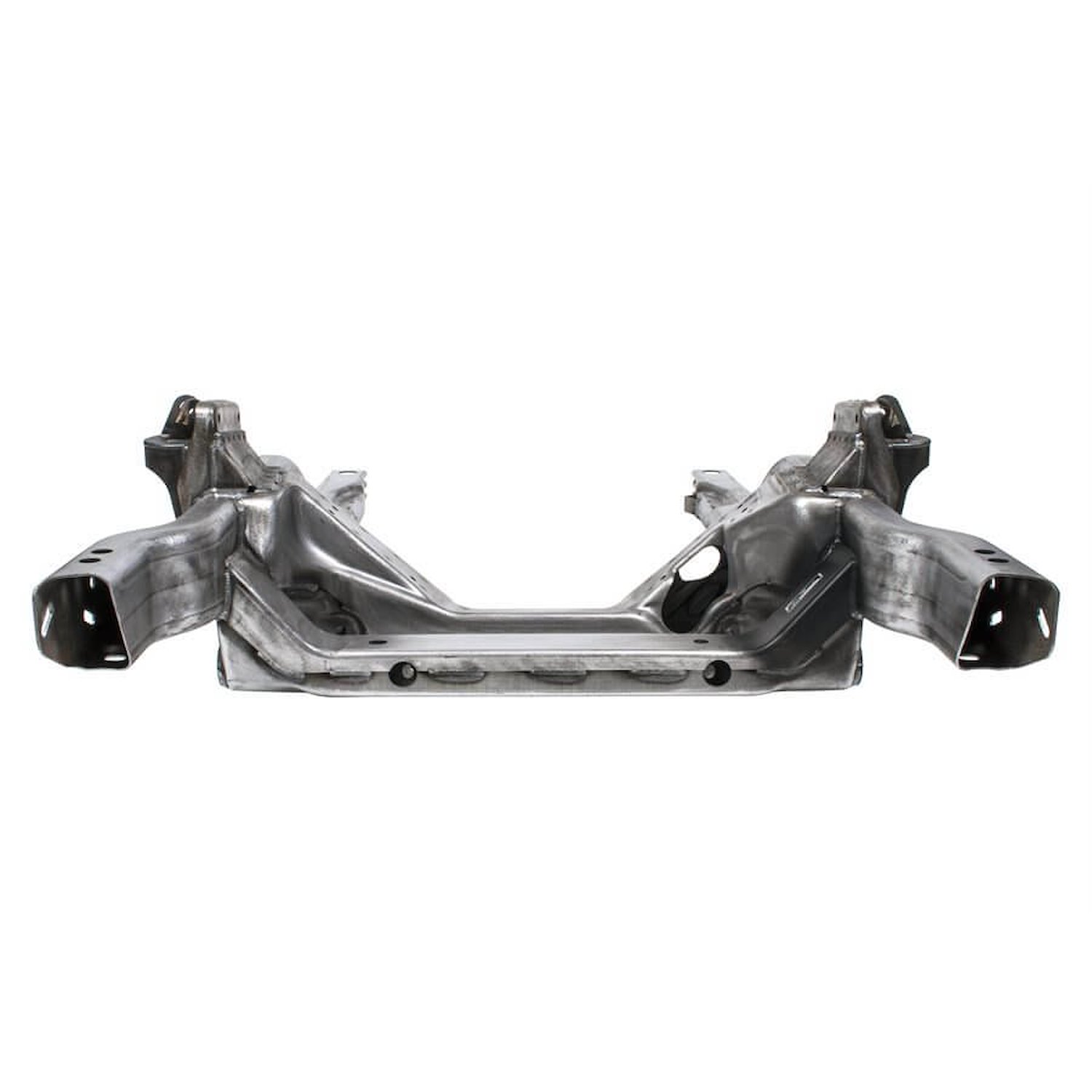

Hydroformed Subframe Kit1967-1969 GM F-Body 1968-1974 GM X-Body Cars with Big Block Chevy Motor Basic Shocks Package Black Powder Coat Finish Unassembled
Specifications:
- Nominal Camber: -0.5 deg.
- Nominal Caster: +4.5 deg. (Adjustable to +5.5 deg.)
- Total Suspension Travel: 6.0"
- Total Bumpsteer, 30" Toe-Span: 0.084" Over 6" of Travel
- Turning Angle: 30.0 deg. ( 18" x 10" or 17" x 9" Wheels)
- Ackerman Angle: 2.5 deg. ( 18" x 10" or 17" x 9" Wheels)
- Turning Angle: 33.8 deg. ( 18" x 9" Wheels)
- Ackerman Angle: 3.5 deg. ( 18" x 9" Wheels
Additional Notes:
At least 17" wheels that require a minimum inside wheel diameter of 16.250" must be used.
Up to a 10" wide wheel can be used without modification to the inner wheel wells.
Subframe and anti-roll bar arms are satin black. Upper and lower control arms are gloss black.
Subframe must ship freight.
Part TypeSubframe
BrandDETROIT SPEED
Package Width350.0
Weight350.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number032018DS
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
