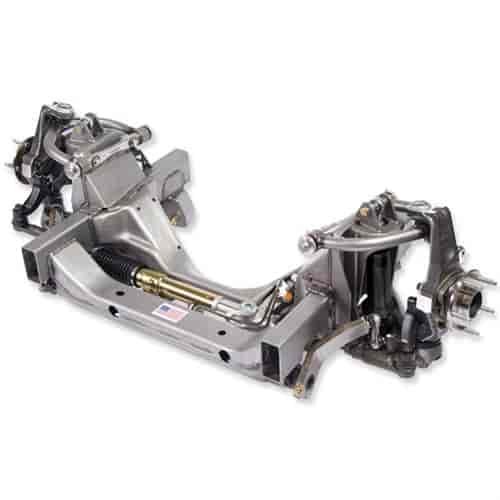

Detroit Speed's X-Gen frame kits allow the integration of Detroit Speed suspension technology into any vehicle. With the same design and engineering found in bolt in front frame kits, Detroit Speed has developed a suspension module that is ready to be subbed into any application with 2" x 4" frame rails.

Features:

• DSE exclusive suspension geometry for superior ride and handling
• OEM quality stamped cross members for improved structural rigidity
• Tubular upper and lower control arms
• 'Detroit Tuned' aluminum body coil over shocks
• 'Detroit Tuned' power rack and pinion steering
• Torrington Bearings
• Caster tuner bushings which allow independent caster/camber adjustments
• Integrated splined anti-roll bar
• Spanner Tool for easy shock adjustments

535 Specifications:

• Track Width (Hub to Hub): 53.5"
• Maximum Wheel Backspacing: 5"
• Total Suspension Travel: 6"
• Frame Rail Dimensions: 2" x 4" x .120" Wall
• Outer to Outer Frame Width: 30.5"
• Frame Rail Length: 24.75"
• Distance from Rear of Frame Rail to Suspension Axis: 12.25"
• Nominal Ride Height: 1.5"

 595 Specifications:

• Track Width (Hub to Hub): 59.5"
• Maximum Wheel Backspacing: 6.125"
• Total Suspension Travel: 6"
• Frame Rail Dimensions: 2" x 4" x .120" Wall
• Outer to Outer Frame Width: 34.25"
• Frame Rail Length: 25.25"
• Distance from Rear of Frame Rail to Suspension Axis: 13.188"
• Nominal Ride Height: 1.9"

Note: Does not include coil over springs, spring rates and sizes vary depending on vehicle.
