Ford Mustang

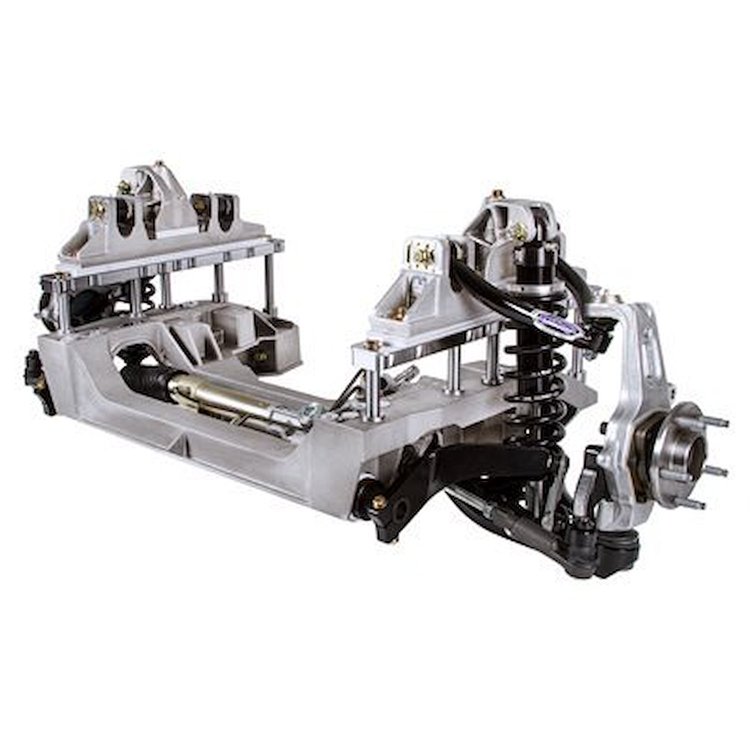

- Aluma-Frame Front Suspension System
- 1964.5-1970 Mustang
- GM 5 on 4-3/4" Bolt Pattern Hubs
- Base Shocks
Aluma-Frame Subframe Specifications; - Total Suspension Travel: 6"
- Ride Height: 1.0" ±1.0"
- Static Camber: -0.5° ±.2°
- Static Caster: 8.0° ±.5°
- Static Toe: 0° ±.1°
- Total Bumpsteer (28" toe span): .070"
- Turning Angle: 27°
- Ackerman Angle (@ 15° turning angle): .875°
Fitment Notes:
At least 17" wheels that require a minimum inside wheel diameter of 16.250" must be used with this kit.
The Aluma-Frame will need to be modified to clear the alternator on the Coyote engine application. A remote mount will be required along with modifying the Aluma-Frame to fit the Coyote engine.
Detroit Speed Aluma-Frame Front Frame Kits convert your cars front suspension to a high performance aluminum cradle suspension. They feature DSE’s unique suspension geometry with 6” of suspension travel for the ultimate in ride and performance.
Features:
- Unique cast aluminum cradle and mounting components resulting in a high strength to weight ratio and precise fitment
- Tubular upper and lower control arms
- ‘Detroit Tuned’ rack and pinion steering
Show More
- DSE/JRi aluminum coilover shocks with 'Detroit Tuned' valving available in fixed
- valve, single adjustable, double adjustable, or remote canister double adjustable versions
- Torrington Bearings
- Splined integrated style Anti-roll bar
- DSE’s Speed-LIGN caster/camber adjusters allow a wide range of adjustability to be made precisely and quickly without needing any additional shims
- Utilizes aluminum uprights and hub packs with a Ford 5" x 4-1/2" bolt pattern
- Can fit up to P265/35R18 tires on a 9” rim on early models and up to P295/35R18 tires on a 10.5” rim on later models
- Retains stock frame rails and inner fenders and only requires a small amount of fabrication for installation
- Engine mount kits available for Ford small block Windsor engines, Ford FE big block engines, Ford 4.6, 5.4, and Coyote 5.0 modular engines including the Boss 302 & GM LS engines
- Spanner Tool for easy shock adjustments
- Forged DSE Spindle
- Composite Anti-Roll Bar Bushings
Part TypeSubframe
Product LineDetroit Speed Aluma-Frame Front Frame Kits
BrandDETROIT SPEED
Package Width350.0
Weight350.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number032051DS
Package Qty1
Package TypeEA
